Redirect Logic Node

The Redirect logic node redirects participants out of a survey to another website while retaining the participant's survey progress. Two query parameters are automatically appended to the URL: one for returning to the survey, and one with a unique participant ID. Logic conditions can be used to determine which participants are redirected.

1:  Using the Survey Editor

To add the Redirect logic node using the Survey Editor, click + Add Survey Element under the staging area:

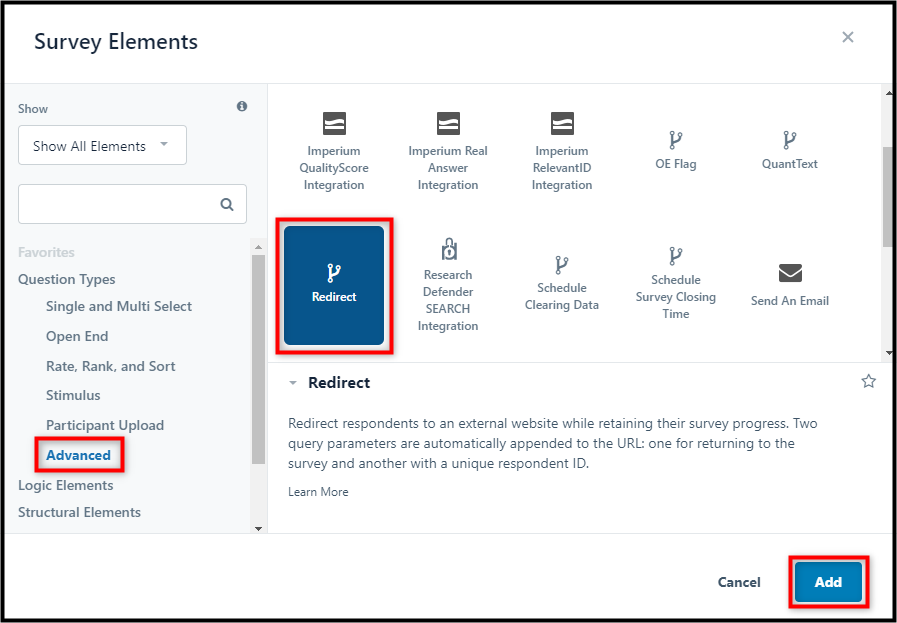

In the Element Library, click Advanced and select the Redirect element from the list. Then click Add:

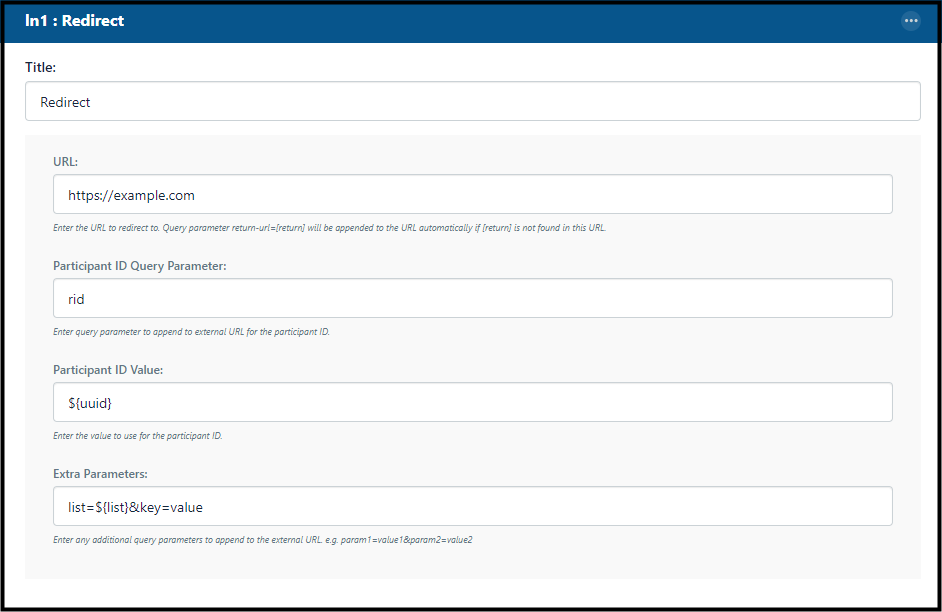

The new element will appear in the staging area, where you can specify the settings for your integration:

1.1:  Configuration

The following options are configurable:

• URL: The external URL participants will be redirected to. The query parameter return-url=[return] will be appended to the URL automatically if [return] is not found in this URL. Example: https://example.com or https://example.com?custom-url=[return]

• Participant ID Query Parameter: The query parameter to append to external URL for the participant ID. Example: rid

• Participant ID Value: Enter the value to use for the participant ID. This field is pipeable. Example: ${uuid}

• Extra Parameters: Enter any additional query parameters to append to the external URL. Example: list=${list}&key=value

Using the above attributes, the Redirect logic node redirects to https://example.com/?return-url=https%3A%2F%2Fyour-server.decipherinc.com%2Fsurvey%2Fselfserve%2F57e%2F240301%3Fstate%3D7d831b32-2705-4a91-9978-268222ea97ab&rid=3wtx0eg9j8rmf1wy&list=0&key=value, which includes the information provided in the Redirect logic node, as well as the URL required to return to the survey.

2:  Using the XML

To add the Redirect logic node using the XML Editor, add the following <logic> tag to your survey XML:

<logic label="ln1"
  redirect:rid_key="rid"
  redirect:rid_value="${uuid}"
  redirect:url="https://example.com"
  redirect:extra_params="list=${list}&amp;key=value"
  uses="redirect.1">
<title>Redirect</title></logic>

2.1:  Required Attributes

Attribute	Description	Example
url	The URL to redirect to. Query parameter return-url=[return] will be appended to the URL automatically if [return] is not found in this URL.	https://example.com?custom-url=[return]
rid_key	The query parameter to append to external URL for the participant ID.	rid
rid_value	Enter the value to use for the participant ID. This field is pipeable.	${uuid}
extra_params	Enter any additional query parameters to append to the external URL.	list=${list}&key=value

Using the above attributes, the Redirect logic node redirects to https://example.com/?return-url=https%3A%2F%2Fyour-server.decipherinc.com%2Fsurvey%2Fselfserve%2F57e%2F240301%3Fstate%3D7d831b32-2705-4a91-9978-268222ea97ab&rid=3wtx0eg9j8rmf1wy&list=0&key=value, which includes the information provided in the Redirect logic node, as well as the URL required to return to the survey.

3:  Additional Considerations

You can use logic conditions to determine which participants are redirected.
