Create dashboard banner segments and apply those segments to a table or chart. Add dynamic splits to tables and charts to allow users the ability to manually toggle between data views.
1: Creating Banners and Segments
By default, the full data set is shown within each element and only one column of data is presented. The keyword banner.local defines a set of banner segments and applies them to a table or chart. The values for banner.local follow a simple conditional syntax, where each segment is defined by its condition and title:
banner.local segment <condition> [title]
1.1: Segmenting a Table Example
Use the following code example to segment a table:
table Likelihood of another purchase in the next month row Q3.r1 row Q3.r2 row Q3.r3 row Q3.r4 row Q3.r5 banner.local segment Q1.r1 Female segment Q1.r2 Male segment Q1.r3 Non-Binary segment Q1.r4 Self-Describe

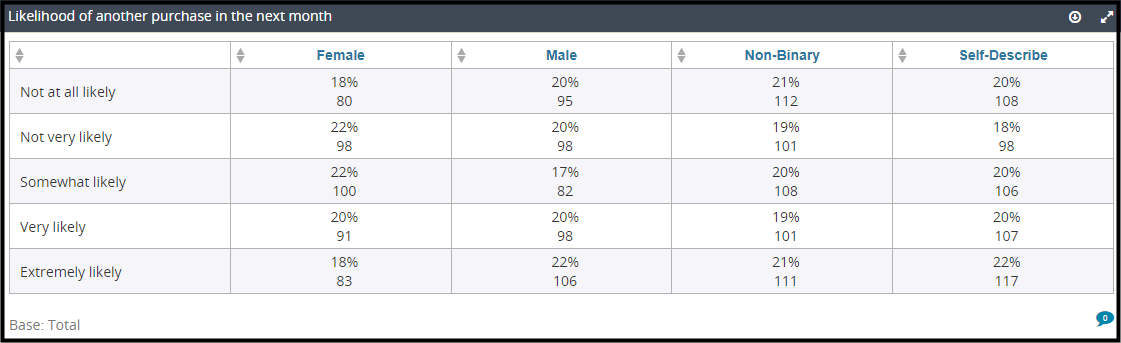

With the banner and segments applied, the table for liklihood of another purchase displays the data split between genders.
1.2: Segmenting a Chart Example

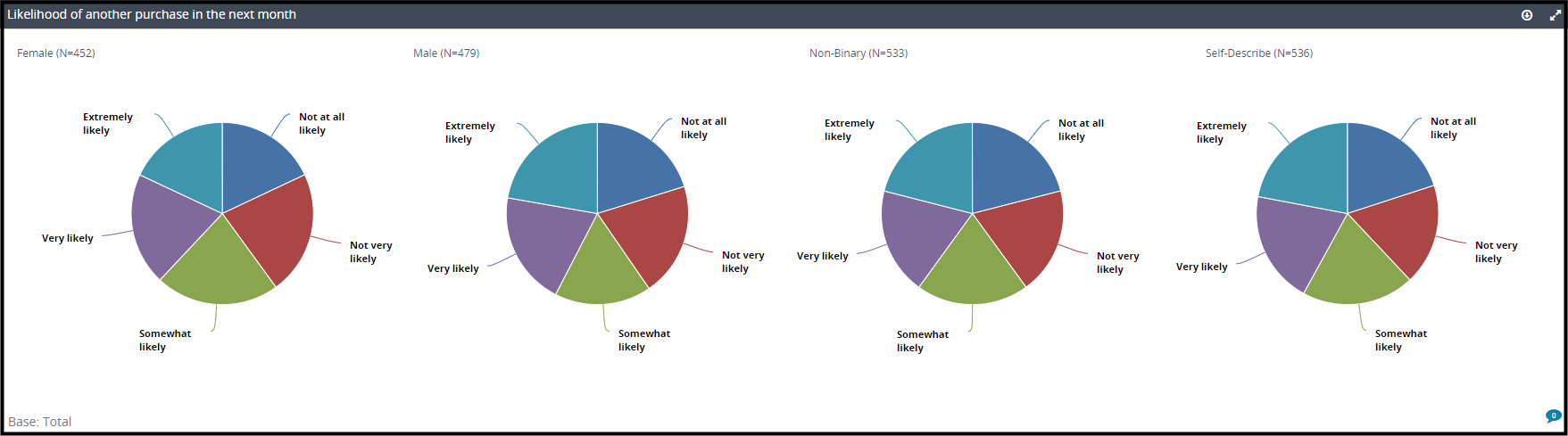

Similarly, with the following banner and segments applied, the likelihood of another purchase chart displays the data split between genders:
chart Likelihood of another purchase in the next month type pie row Q3.r1 row Q3.r2 row Q3.r3 row Q3.r4 row Q3.r5 banner.local segment Q1.r1 Female segment Q1.r2 Male segment Q1.r3 Non-Binary segment Q1.r4 Self-Describe
2: Adding Dynamic Splits to Charts and Tables
Note: When creating selectable splits make sure that the dashboard's compat is set to level 2+ or greater.
By default, banners and segments are applied prior to loading a dashboard, so each element will appear with programmed splits already in place. If you want to allow users the ability to toggle between data views manually within your dashboard, you would need to add a dynamic split to each element. You can use bannergroup.local to add dynamic splits to charts and tables.
Note: Local splits take priority over global splits.
2.1: Adding a Dynamic Split to a Table Example
The following code allows users to toggle between viewing the age and likelihood of purchase of participants within a gender table:
table Gender of Participants
rows Q10.r1-r4
bannergroup.local
banner.local Age
segment 'Q11.check("18-24")' 18-24
segment 'Q11.check("25-34")' 25-34
segment 'Q11.check("35-44")' 35-44
segment 'Q11.check("45-54")' 45-54
segment 'Q11.check("55-64")' 55-64
segment 'Q11.check("> 64")' 65+
banner.local Likelihood of Purchase
segment "Q3.r1"
segment "Q3.r2"
segment "Q3.r3"
segment "Q3.r4"
segment "Q3.r5"

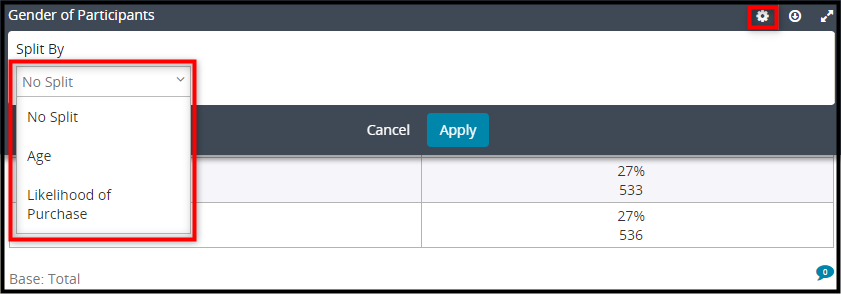

This code applies a gear icon to the gender table. Click the gear icon to open the Split By drop-down menu to toggle and apply different data views.

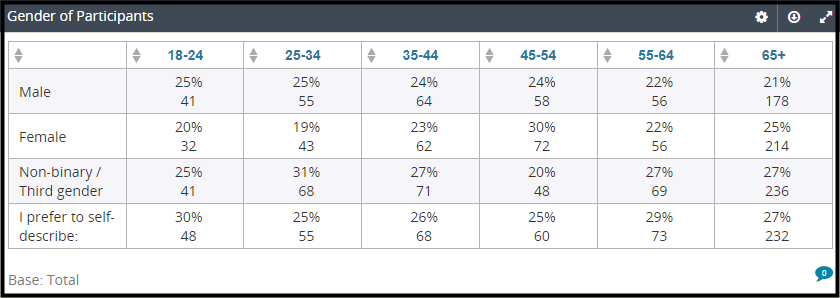

Select a split, then click Apply to dynamically change the table to a segmented view.
2.2: Adding a Dynamic Split to a Chart Example
The following code allows users to toggle between viewing the age and likelihood of purchase of participants within a gender chart:
chart Gender Bar Chart
rows Q1.r1-r4
bannergroup.local
banner.local Age
segment 'Q11.check("18-24")' 18-24
segment 'Q11.check("25-34")' 25-34
segment 'Q11.check("35-44")' 35-44
segment 'Q11.check("45-54")' 45-54
segment 'Q11.check("55-64")' 55-64
segment 'Q11.check("> 64")' 65+
banner.local Likelihood of Purchase
segment "Q3.r1"
segment "Q3.r2"
segment "Q3.r3"
segment "Q3.r4"
segment "Q3.r5"

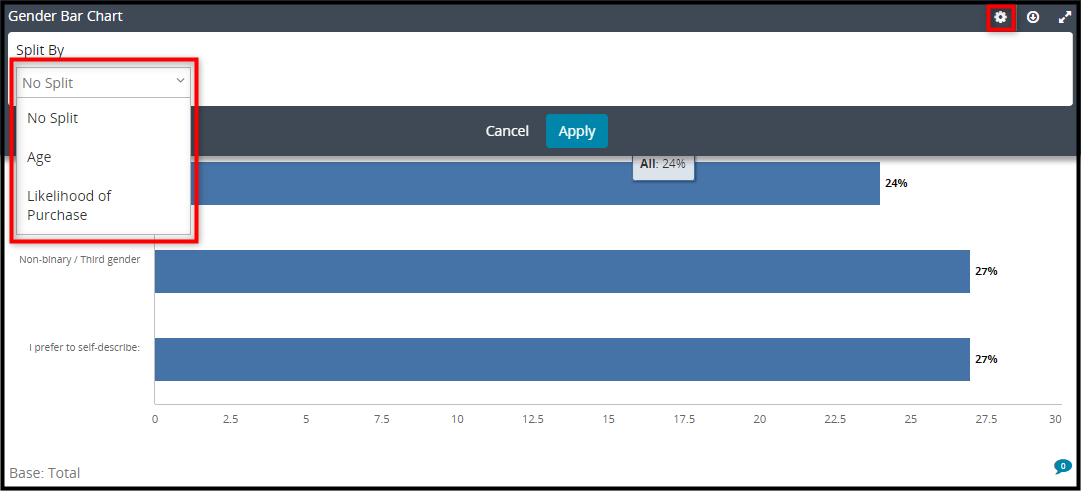

This code applies a gear icon to the gender chart. Click the gear icon to open the Split By drop-down menu to toggle and apply different data views.

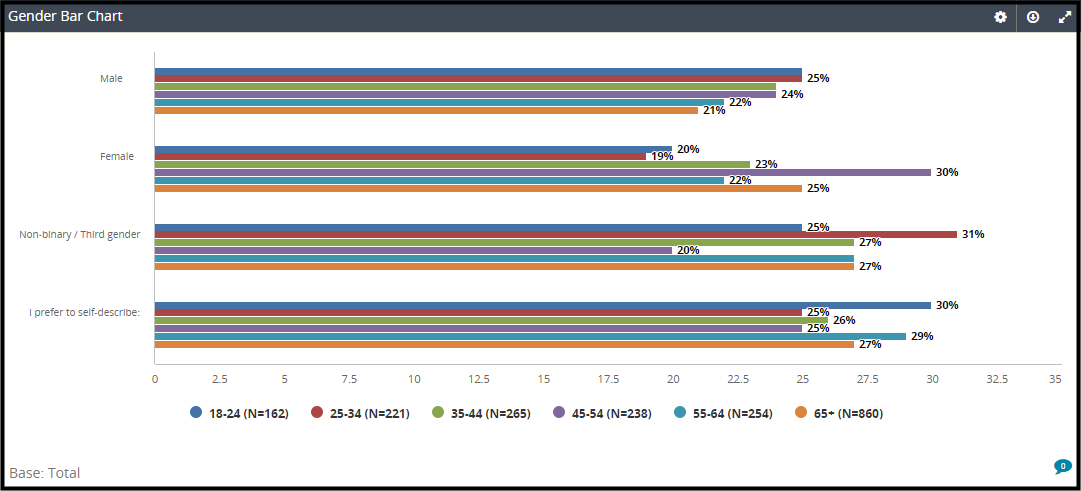

Select a split, then click Apply to dynamically change the chart to a segmented view.
2.3: Default to a Segmented View
You can force a segmented view to show without a split by adding default=1 to a banner.local attribute. For example, if you want users to see the gender table split by age unless another banner is selected, use the following code:
table Gender of Participants
rows Q10.r1-r4
bannergroup.local
banner.local default=1 Age
segment 'Q11.check("18-24")' 18-24
segment 'Q11.check("25-34")' 25-34
segment 'Q11.check("35-44")' 35-44
segment 'Q11.check("45-54")' 45-54
segment 'Q11.check("55-64")' 55-64
segment 'Q11.check("> 64")' 65+
banner.local Likelihood of Purchase
segment "Q3.r1"
segment "Q3.r2"
segment "Q3.r3"
segment "Q3.r4"
segment "Q3.r5"
When default=1 is added to a banner.local, "No Split" is not an option in the Split By drop-down menu.
