Customizing Charts via chartopt

The keyword chartopt adds customization to the chart including a chart title, background color, axis scale, segment stacking, chart legend, data labels, data label rotation and axis styling.

Base syntax:

chartopt <option> <value>

1:  Chart Style Options

The chartopt keyword can be used to even further customize dashboard charts. Using the system's syntax with the available options from the Highcharts API, you can modify a chart's look and feel, CSS style, size, and display attributes.

Some of the most commonly used chartopt functions are listed below with descriptions on how to use them.

Attribute	Description
title.text	Changes the title in the chart (to show within exports, etc.).
title.style.color	Changes the color of the chart title. You can use the name of any color that can be defined with CSS, or use the hex value (without the #).
chart.backgroundColor	Changes the background color of a chart.
xAxis.min	Controls the minimum value set on the x-axis of the chart.
xAxis.max	Controls the maximum value set on the x-axis of the chart.
yAxis.min	Controls the minimum value set on the y-axis of the chart.
yAxis.max	Controls the maximum value set on the y-axis of the chart.
yAxis.stackLabels.enabled	Changes bar charts to be stacked.
plotOptions.column.stacking	Change column charts to be stacked.
plotOptions.column.dataLabels.color	Changes the color of the column headers in a chart.
plotOptions.series.animation	Enables / disables the initial animation when a series is displayed. Possible values are 1 and 0.
plotOptions.series.animation.duration	Controls the duration of a series' animation in milliseconds.
plotOptions.series.animation.easing	A string reference to an easing animation function. Set to 'easeOutBounce'.
legend.enabled	Enables / disables the chart legend.
legendPrecision	If the chart legend is enabled, sets the precision for the legend. The count equals the number of decimal places displayed for a label. Valid values are 0 - 20 (by default, this option is set to 0).
plotOptions.series.dataLabels.enabled	Enables data labels (the visible values for any point).
plotOptions.series.dataLabels.style	Sets CSS styling properties for data labels.
plotOptions.series.dataLabels.rotation	Slants data labels to the degree specified.
(x|y)Axis.labels.style	Sets the general chart style using CSS properties for each axis label.
chartopt legendBase	Set to 0 if you want to hide the base for each segment displayed in the chart legend.
chartopt plotOptions.series.dataLabels.enabled	Set to true / false to show or hide the data labels in a chart.
chartopt plotOptions.<charttype>.dataLabels.format	Takes a string as an argument to change the text displayed in data labels.

1.1:  Locating chartopt Attributes within the Highcharts API Documentation

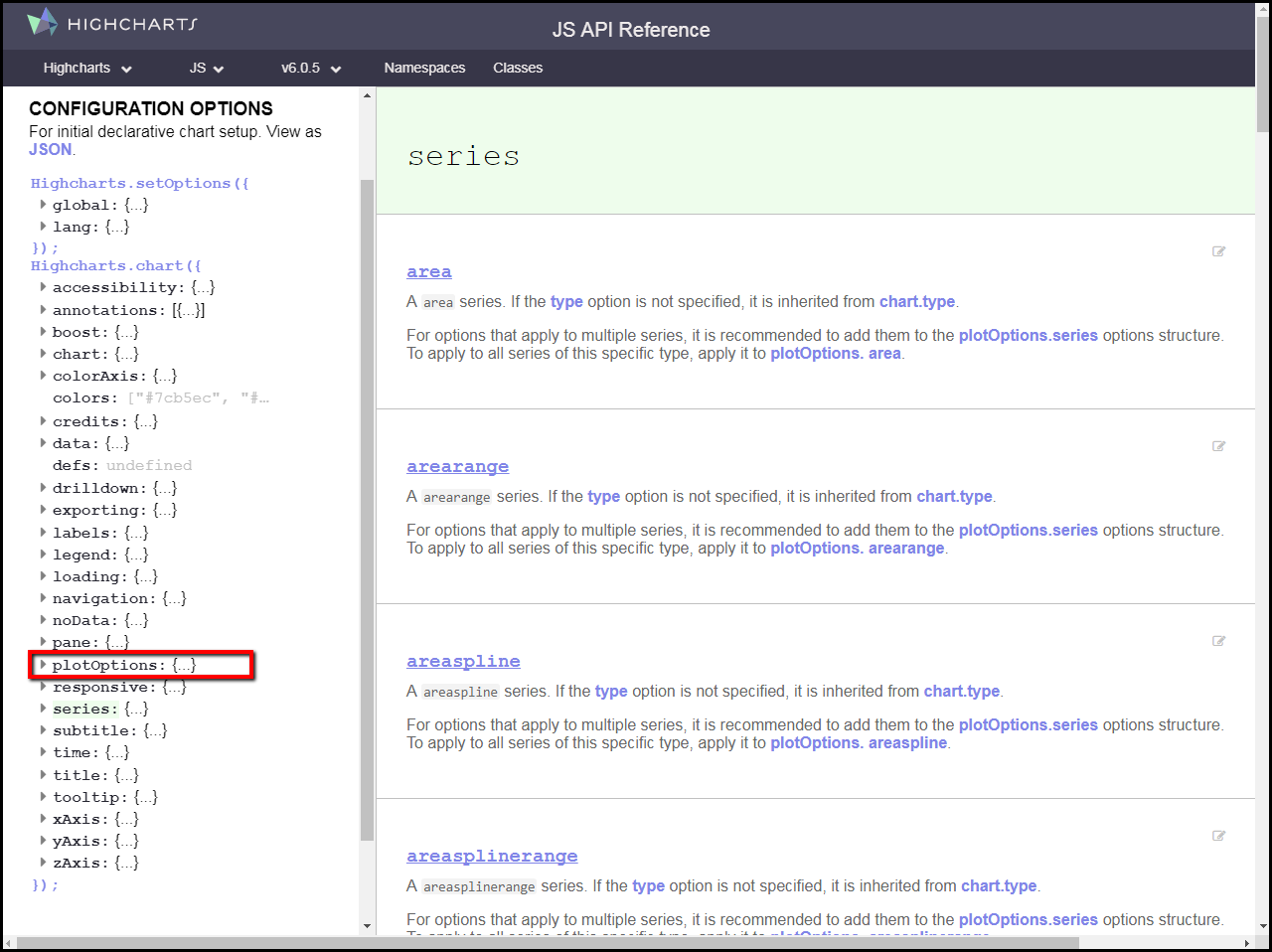

Decipher adapts the Highcharts API in order to build and style charts. There are many additional attributes available in the Highcharts API documentation that you can search through for more customization options. The Highcharts API options are separated into different categories that can be accessed by using the chartopt keyword in the Decipher Dashboard Editor.

The plotOptions section is the main category for customizing charts and manipulating the information displayed in them.

As the API documentation suggests, the plotOptions attribute is a container for all configuration options for the series displayed within a chart. Other options of interest include:

• the xAxis and yAxis option groups, which control items such as axis labels and ticks.

  the labels and legend option groups, which control legend and label texts.

  the chart group, which gives you access to modifying the full displayed chart and not just its contents.

Each option group has different subsections to it. For example, in the plotOptions section of the Highcharts docs, there are different attributes grouped mainly by chart type, such as area, bar, bubble, column, gauge, and pie.

Within these chart types, there are options tied to the specific chart type. For example, a pie chart type will have the startAngle attribute to specify the start angle for slices of the pie in degrees.

1.2:  Applying Highcharts Attributes to a Dashboard

Decipher uses the chartopt keyword to access most of the Highcharts chart attributes. When using the chartopt keyword to specify a Highcharts attribute, start with the outermost attribute in the menu.

For example, if you want to control the animation duration of a pie chart, look for that attribute under plotOptions, then pie, then animation. You would then use the order of reference of these attributes to build out your chartopt syntax.

Chain these attributes with a dot to create a valid chartopt value:

chartopt plotOptions.pie.animation.duration

Then, specify a valid value for the duration, as explained in the duration attribute documentation on the API page.

Use this approach for any attribute listed in the Highcharts API.

Note: Decipher uses an older version of the Highcharts API. Some listed functionalities on the API page may not be supported by Decipher dashboards.

2:  Customizing Charts

2.1:  Customizing Chart Colors

The below syntax can be used to produce a fully styled chart, with different colors and font weights for each displayed item. Each option used has comments that outline which part of  the chart they control:

chart General Population
type column
banner.local
segment s1.r1 Male
segment s1.r2 Female

row GEN.r1 Millenials
row GEN.r2 Generation X
row GEN.r3 Baby Boomers

#chart title options
chartopt title.text "General Population" #add a title inside the chart itself
chartopt title.style.color #00CC52 #set the title color
chartopt title.style.fontWeight bold #set the title font weight

#chart options
chartopt chart.backgroundColor #16263B  #set the chart background color
chartopt xAxis.labels.style.color #00CC52 #set the color for each column label in the chart
chartopt xAxis.labels.style.fontWeight bold #set the font weight for each column label in the chart
chartopt plotOptions.series.dataLabels.style.color #FFFFFF #set the color for the percentage labels displayed in the chart
chartopt plotOptions.series.dataLabels.style.fontWeight bold #set the font weight for the percentage labels displayed in the chart
chartopt yAxis.labels.style.color #00CC52 #set the color for the percentage values displayed along the y axis
chartopt yAxis.labels.style.fontWeight bold #set the font weight for the percentage values displayed along the y Axis
chartopt legend.itemStyle.color #00CC52 #set the color of  the legend text in the banner legends.
palette 00BEBE 00D3E7 #set the color palette to be applied to the segments in your banner split

Note:  If copying the above syntax, make sure to remove the comments.

Note:  The above syntax is universal for all basic chart types. Some custom chart types such as gauge and stacked charts may require different syntax to achieve the same styling.

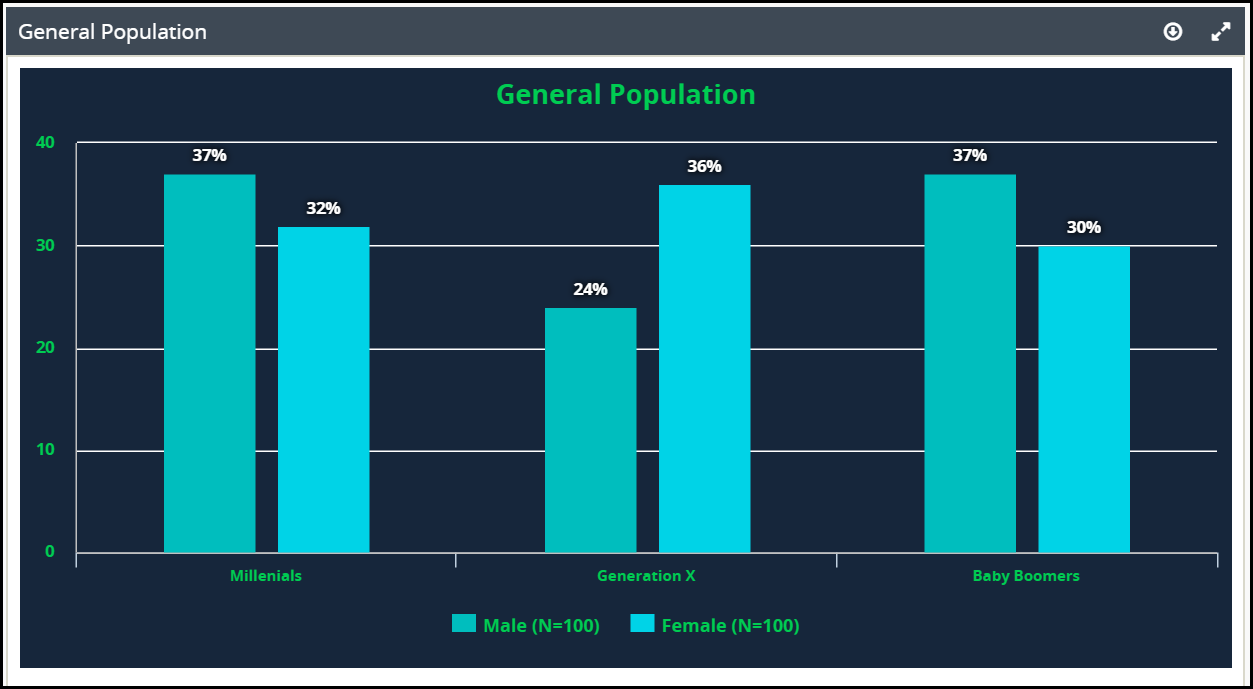

The above syntax will produce the following fully styled chart:

2.2:  Adjusting Chart Axes

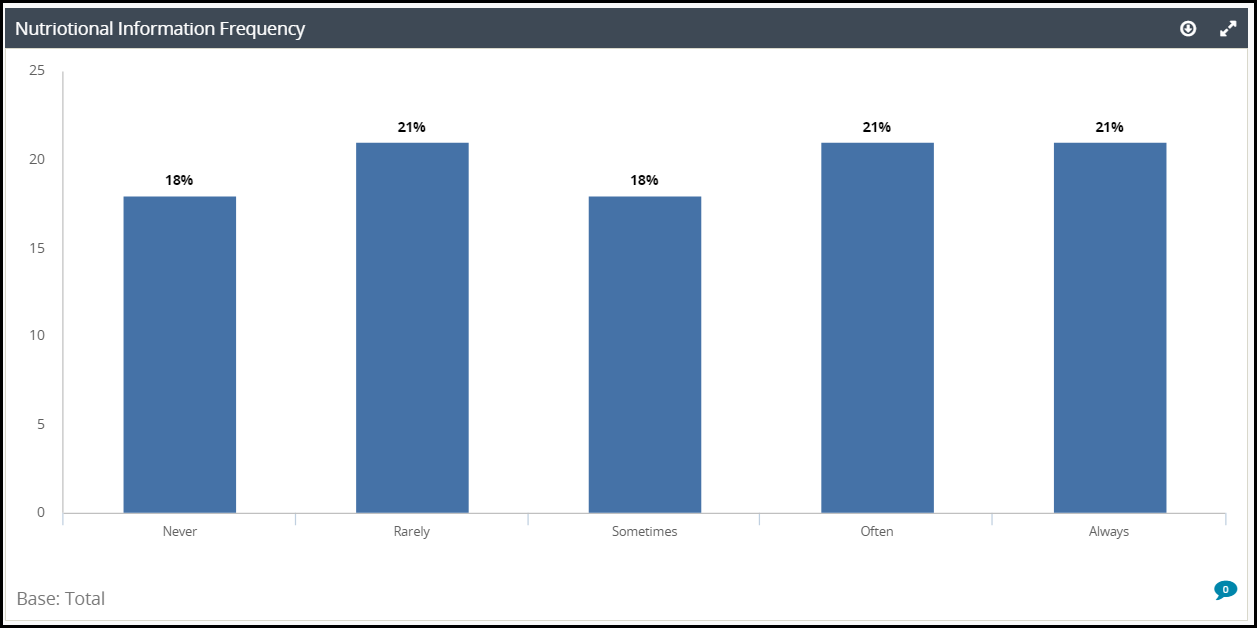

By default, the chart x-axis (or y-axis depending on the chart type) values will be dynamically set based on the highest value to be pulled in from your datapoints. If you want to set a custom x- / y-axis minimum or maximum value, you can use the xAxys.min/yAxis.min and xAxis.max/yAxis.max chartopt attributes. The below chart is an example of the default calculated yAxis values:

To modify the yAxis of this chart to always show values between 0 and 100% rather than 0 to 25%, you can use the below syntax:

chart Nutritional Information Frequency
type column
rows s4.r1-r5
chartopt yAxis.min 0
chartopt yAxis.max 100

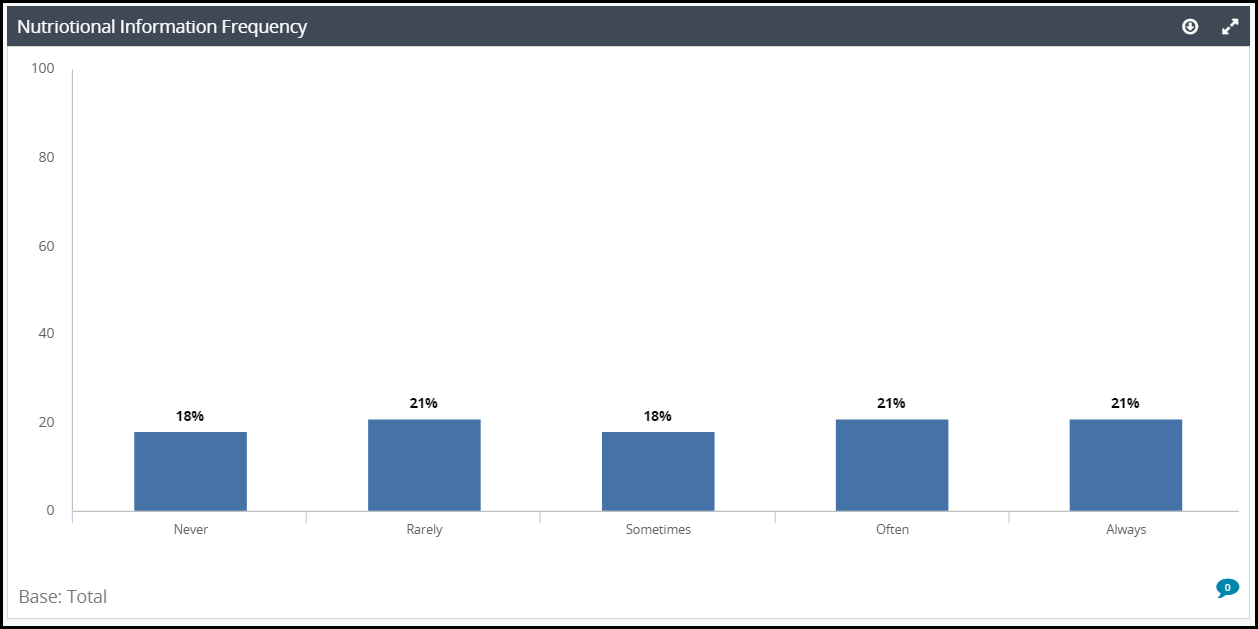

Which will produce the following result:

2.3:  Using chartopt to Format Chart Data Labels

Use the chartopt attribute to enable, disable, and modify the data labels of each datapoint displayed within your chart.

2.3.1:  Enable or Disable Data Labels

To enable or disable the data labels for a chart, use the below base syntax:

chartopt plotOptions.series.dataLabels.enabled false true/false

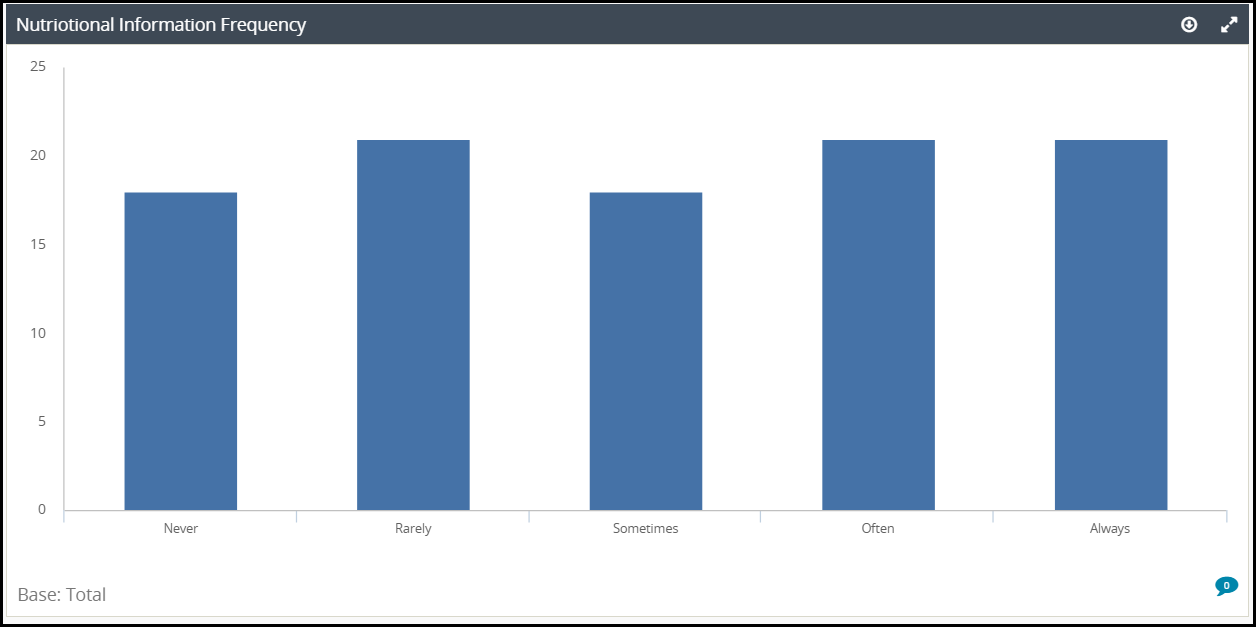

Applying chartopt plotOptions.series.dataLabels.enabled false to a column chart will produce the following chart:

2.3.2:  Format Chart Data Labels

Use the chartopt attribute to display different types of information related to the datapoint that the label belongs to. By using the format attribute, you can modify what text you display in your data label and how you display it.

Base syntax:

chartopt plotOptions.<charttype>.dataLabels.format ‘some string with formatting applied to it’

Note:  <charttype> will change depending on the type of chart you are using. You can use column, pie, area, line, or bar.

When changing the formatting you can use the {point} keyword to access different information related to the datapoint you are displaying. Below is a list of the attributes you can access using {point}.

Attribute	Description
point.percentage	Stacked series and pies only. The point's percentage of the total.
point.name	The point name, if defined. For pie charts, this will be the name of the referenced data points. For other chart types, the default is “All” if no splits are applied to the chart. If a banner split is added, this will display the segment name for that point.
point.series	The series object. The series name is available through point.series.name. The series name is similar to the point name - “All” if no splits are defined and the segment name if any splits are applied.
point.total	Stacked series and pie charts only. The total value at this point's x value.
point.x:	The x value of the point - used for bar charts.
point.y:	The y value of the point - used for line / area / column charts.

Below is an example of modifying the data labels of a pie chart to include both the point name of a pie chart, as well as the point percentage:

chart id=db-10 Gender of Respondents
type pie
   row Q1.r1 Male
   row Q1.r2 Female
   row Q1.r3 Non-Binary
   row Q1.r4 Self-Describe
chartopt plotOptions.series.dataLabels.enabled true
chartopt plotOptions.pie.dataLabels.format '{point.name} <br/> {point.percentage:.1f}%'

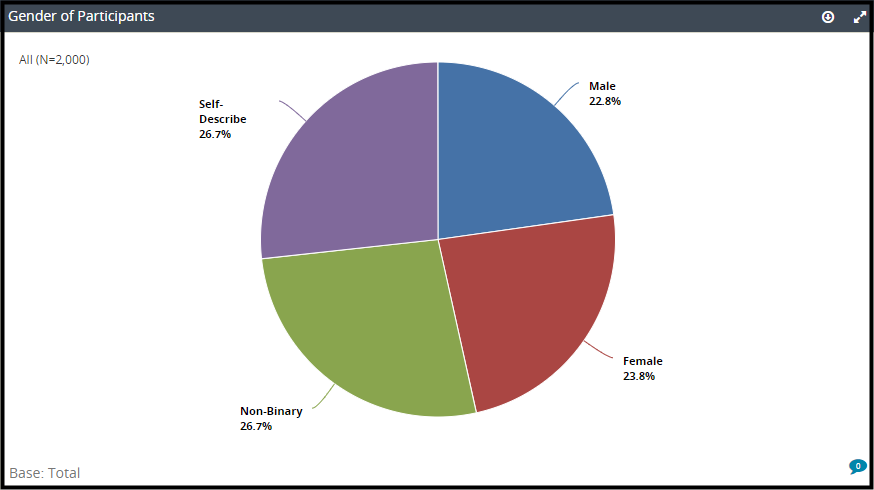

In addition to adding the point.name and point.percentage keywords, you also use the :.1f syntax to format the displayed percentage up to the first decimal symbol. This will produce the below result:
