Customizing the Text Highlighter Element

1: Overview

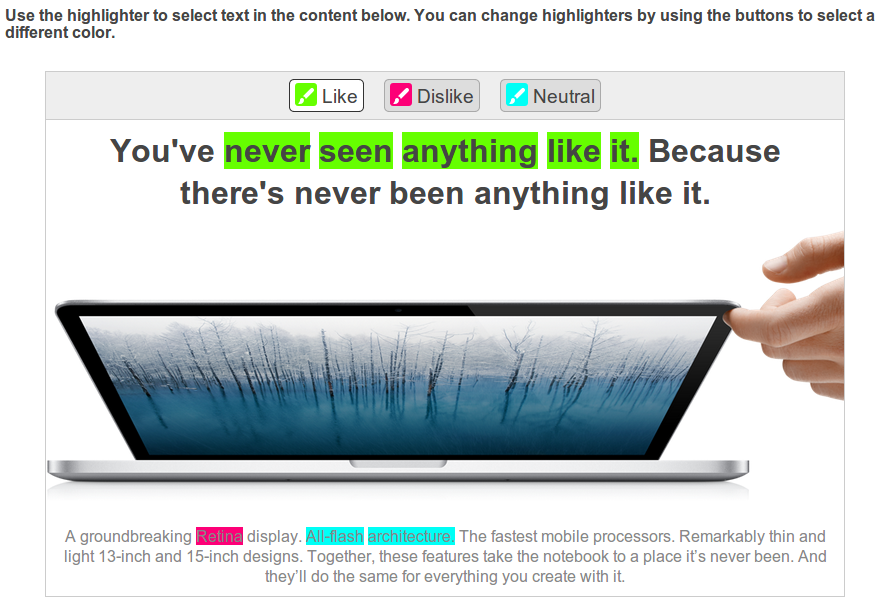

The text highlighter element allows participants to highlight elements to make selections. Compatible on desktops, tablets and smartphone devices, this dynamic question style is a great way to gain insight on what participants think about advertisements, concepts and any kind of textual information.

The text highlighter element is customizable. You can:

disable certain elements
update highlighter colors
incorporate HTML elements
provide an opt-out option
include numerous selection options (for example, "Like", "Neutral", "Dislike")

2: Underlying Question Architecture

The text highlighter element sits on top of a <select> question. See below for an example of the base XML code required.

<select label="Q1" optional="1">
 <title>How do you feel about the following statement?</title>
 <comment>Please make a selection.</comment>
   <choice label="ch1">Like</choice>
   <choice label="ch2">Neutral</choice>
   <choice label="ch3">Dislike</choice>
   <row label="r1">The</row>
   <row label="r2">quick</row>
   <row label="r3">brown</row>
   <row label="r4">fox</row>
   <row label="r5">jumps</row>
   <row label="r6">over</row>
   <row label="r7">the</row>
   <row label="r8">lazy</row>
   <row label="r9">dog</row>
</select>

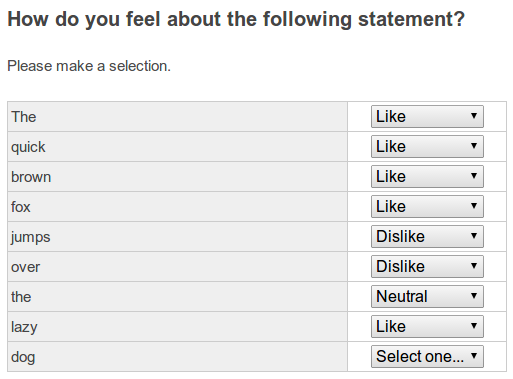

The XML code above produces the following result:

3: Converting to the Text Highlighter Element

To add the text highlighter style to this question, update the <select> tag as shown below:

<select label="Q1" optional="1" uses="hottext.3">

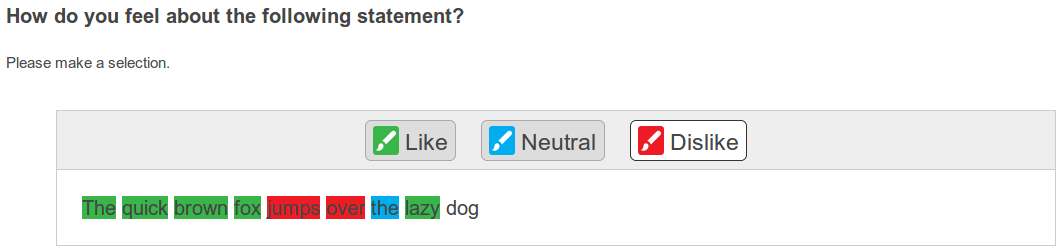

This change produces the following result:

That's all it takes to transform the simple select question into a mobile-friendly, interactive question. You may now select a highlighter from the buttons above and make selections to the text provided (for example, green for "Like", blue for "Neutral" and red for "Dislike").

4: Customization

Listed below are all of the attributes available for this element. Override them to create a custom look and feel for your text highlighter element.

Attribute	Type	Description	Example
`hottext:atleast`	int	The number of required highlighted answers that must be selected before the "Continue"/"Finished" button is enabled. Default: `1`	Example: `hottext:atleast="5"` requires the participant to highlight five items before continuing.
`hottext:atmost`	int	The maximum number of highlighted answers that can be selected. Default: `9999`	`hottext:atmost="10"` means the participant can highlight up to ten items and no more.
`hottext:marker_color`	string	The color of the marker for the `<choice>` element. Defaults: 1 choice: `#39B54A` 2 choices: `#39B54A, #ED1C24` 3 choices: `#39B54A, #00AEEF, #ED1C24` 4+ choices: `#39B54A, #00AEEF, #ED1C24, [...]` the rest are transparent	`<choice label="ch1" hottext:marker_color="#00000">Redact</choice>` will change the marker color to black, allowing you to perform NSA-like redacting.
`hottext:nospace`	bool	Determines whether a trailing space is added after the `<row>` item. Default: `1`	`<row label="r1" hottext:nospace="0">run/</row>` will not add a whitespace after "run/".
`hottext:prefix_html`	string	HTML code to insert before this `<row>` element. Values provided here will not be selectable.	`<row label="r1" hottext:prefix_html="<br/>">The</row>` will add a break before "The", displaying "The" on its own line. `<row label="r1" hottext:prefix_html="How now ">brown cow</row>` will add the words "How now " before "brown cow" and only "brown cow" will be selectable.
`hottext:suffix_html`	string	HTML code to insert after this `<row>` element. Values provided here will not be selectable.	`<row label="r1" hottext:suffix_html=" <i class='fa-icon-star' />twinkle twinkle little</row>` will display the star icon just after the words "twinkle twinkle little" and only "twinkle twinkle little" will be selectable.
`hottext:disable`	bool	Determines whether to disable the row item so that it cannot be selected. Default: `0`	`<row label="r1" hottext:disable="1">Chapter 1:</row>` will display "Chapter 1" normally, but it cannot be selected.
`hottext:containerCSS`	CSS	CSS for the main text highlighter container.	`hottext:containerCSS="border: 5px solid black;"` will add a thick black border to the main container.
`hottext:headerCSS`	CSS	CSS for the header container containing the highlighter marker buttons.	`hottext:headerCSS="background-color: red;"` will update the background color from gray to red.
`hottext:headerStickyCSS`	CSS	CSS for the header container containing the highlighter marker buttons when it is in "sticky mode". This happens when the participant has scrolled down far enough to make the header follow the view, sticking to the top of the screen for convenience.	`hottext:headerStickyCSS="border: 1px solid black;"` will add a thin black border when the header is scrolling with the view, in "sticky mode".
`hottext:buttonGroupCSS`	CSS	CSS for the container containing the highlighter markers.	`hottext:buttongGroupCSS="margin: 0px;"` will reduce the overall vertical space that the buttons take up.
`hottext:markerCSS`	CSS	CSS for the highlighter marker buttons.	`hottext:markerCSS="font-weight: bold; color: black;"` will update the marker text from a thin gray to a thick black.
`hottext:iconBrushCSS`	CSS	CSS for the brush icons present in the highlighter marker buttons.	`hottext:iconBrushCSS="border: 1px solid black;"` will add a thin black border around only the brush icons.
`hottext:markerSelectedCSS`	CSS	CSS for the highlighter marker button currently in use.	`hottext:markerSelectedCSS="font-weight: bold;"` will display bold text in the marker currently in use.
`hottext:contentCSS`	CSS	CSS for the container containing the selectable elements that can be highlighted.	`hottext:contentCSS="font-weight: bold; padding: 2px;"` will embolden all of the selectable text and reduce the overall padding.
`hottext:spotImageCSS`	CSS	CSS for the containers containing any images present within the content area.	`hottext:spotImageCSS="padding: 15px;"` will increase the overall padding for each image, making the selection color more visible.
`hottext:spotDisableCSS`	CSS	CSS for any `<row>` elements that are `hottext:disabled="1"`	`hottext:spotDisableCSS="background: white; font-style: italic;"` will remove the default gray background color and display any text in italics.
`hottext:footerCSS`	CSS	CSS for the footer that can (optionally) contain the opt-out option.	`hottext:footerCSS="background: #efefef; border: 1px solid #ccc; border-top: none;"` will style the footer to look similar to the default header.
`hottext:overlayCSS`	CSS	CSS for the overlay that is (by default) not visible.	`hottext:overlayCSS="width: 100%; height: 100%; opacity: 0.2; filter: alpha(opacity=20); background: red;"` to add a light red overlay covering the entire text highlighter question.
`hottext:report_custom_chart`	enum	The default custom chart to display in the Crosstabs report (`ransomword`, `colorcodeword`, `wordcloud`). Default: `ransomword`	`hottext:report_custom_chart="wordcloud"` will show a HTML5 word cloud in the Crosstabs report.
`hottext:report_legend_palette`	string	Custom colors to provide to replace the color palette used in the Crosstabs report (delimited by double pipes, \|\| ). It is suggested to provide at least 4 colors and no more than 12. Default: `#E2A29D\|\|#A1B9CC\|\|#B8D4B1\|\|#C8B7CD\|\|#E5C395\|\|#E6E6B8`	`hottext:report_legend_palette="#000000\|\|#3d3d3d\|\|#6d6d6d\|\|#9d9d9d\|\|#d1d1d1"` will use a color palette of grays, from dark to light.

5: Customization Examples

Using the attributes above, we can customize the default look and feel of the text highlighter element. See the examples below that help illustrate a few of the possibilities.

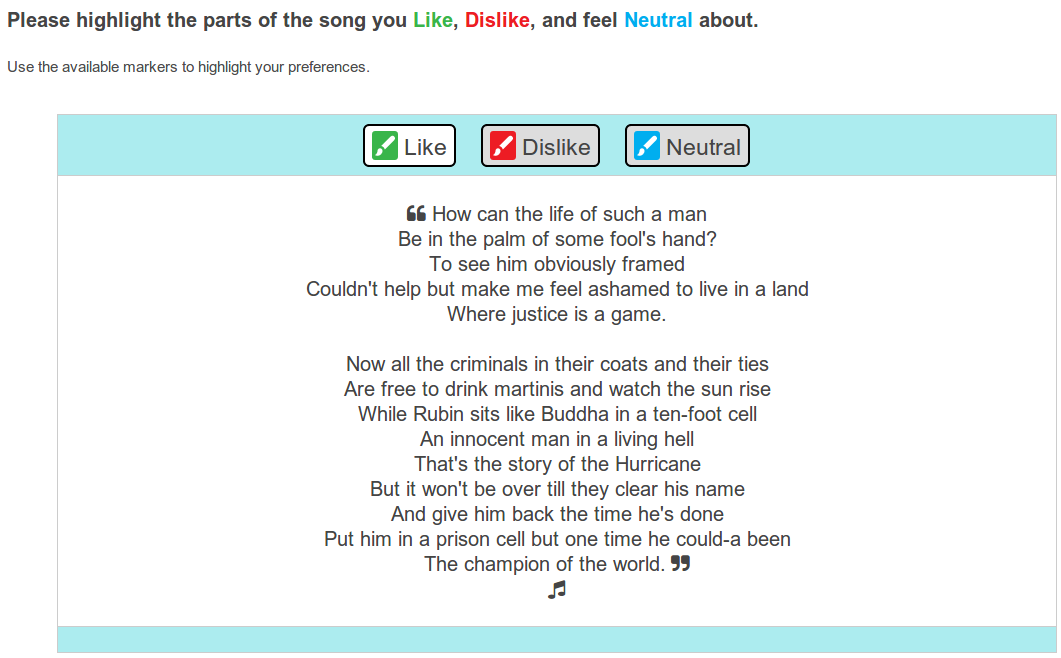

5.1: Example 1


Using a number of the attributes, we can change the overall look of our question style. Using the hottext:suffix_html and hottext:prefix_html attributes, we added spacing and displayed icons that cannot be selected. View the XML code for this example below:

5.1.1: Example 1 XML Code

<select label="Q1" optional="0" uses="hottext.1"
  hottext:contentCSS="text-align: center;"
  hottext:headerCSS="background: #acecef;"
  hottext:footerCSS="background: #acecef; border: 1px solid #ccc;
border-top: none;"
  hottext:markerCSS="border: 2px solid black;">  <title>    Please highlight the parts of the song you
    <span style="color: #39B54A">Like</span>,
    <span style="color: #ED1C24">Dislike</span>,
    and feel <span style="color: #00AEEF;">Neutral</span> about.
  </title>
  <comment>Use the available markers to highlight your preferences.</comment>
  <choice label="ch1">Like</choice>
  <choice label="ch2" hottext:marker_color="#ED1C24">Dislike</choice>
  <choice label="ch3" hottext:marker_color="#00AEEF">Neutral</choice>
  <row label="r1"  hottext:prefix_html="<i class='fa-icon-quote-left' /> ">How</row>
  <row label="r2"  >can</row>
  <row label="r3"  >the</row>
  <row label="r4"  >life</row>
  <row label="r5"  >of</row>
  <row label="r6"  >such</row>
  <row label="r7"  >a</row>
  <row label="r8"  hottext:suffix_html="<br/>">man</row>
  <row label="r9"  >Be</row>
  <row label="r10" >in</row>
  <row label="r11" >the</row>
  <row label="r12" >palm</row>
  <row label="r13" >of</row>
  <row label="r14" >some</row>
  <row label="r15" >fool's</row>
  <row label="r16" hottext:suffix_html="<br/>">hand?</row>
  <row label="r17" >To</row>  <row label="r18" >see</row>
  <row label="r19" >him</row>
  <row label="r20" >obviously</row>
  <row label="r21" hottext:suffix_html="<br/>">framed</row>
  <row label="r22" >Couldn't</row>
  <row label="r23" >help</row>
  <row label="r24" >but</row>
  <row label="r25" >make</row>
  <row label="r26" >me</row>
  <row label="r27" >feel</row>
  <row label="r28" >ashamed</row>
  <row label="r29" >to</row>
  <row label="r30" >live</row>
  <row label="r31" >in</row>
  <row label="r32" >a</row>
  <row label="r33" hottext:suffix_html="<br/>">land</row>
  <row label="r34" >Where</row>
  <row label="r35" >justice</row>
  <row label="r36" >is</row>
  <row label="r37" >a</row>
  <row label="r38" hottext:suffix_html="<br/><br/>">game.</row>
  <row label="r39" >Now</row>
  <row label="r40" >all</row>
  <row label="r41" >the</row>
  <row label="r42" >criminals</row>
  <row label="r43" >in</row>
  <row label="r44" >their</row>
  <row label="r45" >coats</row>
  <row label="r46" >and</row>
  <row label="r47" >their</row>
  <row label="r48" hottext:suffix_html="<br/>">ties</row>
  <row label="r49" >Are</row>
  <row label="r50" >free</row>
  <row label="r51" >to</row>
  <row label="r52" >drink</row>
  <row label="r53" >martinis</row>
  <row label="r54" >and</row>
  <row label="r55" >watch</row>
  <row label="r56" >the</row>
  <row label="r57" >sun</row>
  <row label="r58" hottext:suffix_html="<br/>">rise</row>
  <row label="r59" >While</row>
  <row label="r60" >Rubin</row>
  <row label="r61" >sits</row>
  <row label="r62" >like</row>
  <row label="r63" >Buddha</row>
  <row label="r64" >in</row>
  <row label="r65" >a</row>
  <row label="r66" >ten-foot</row>
  <row label="r67" hottext:suffix_html="<br/>">cell</row>
  <row label="r68" >An</row>
  <row label="r69" >innocent</row>
  <row label="r70" >man</row>
  <row label="r71" >in</row>
  <row label="r72" >a</row>
  <row label="r73" >living</row>
  <row label="r74" hottext:suffix_html="<br/>">hell</row>
  <row label="r75" >That's</row>
  <row label="r76" >the</row>
  <row label="r77" >story</row>
  <row label="r78" >of</row>
  <row label="r79" >the</row>
  <row label="r80" hottext:suffix_html="<br/>">Hurricane</row>
  <row label="r81" >But</row>
  <row label="r82" >it</row>
  <row label="r83" >won't</row>
  <row label="r84" >be</row>
  <row label="r85" >over</row>
  <row label="r86" >till</row>
  <row label="r87" >they</row>
  <row label="r88" >clear</row>
  <row label="r89" >his</row>
  <row label="r90" hottext:suffix_html="<br/>">name</row>
  <row label="r91" >And</row>
  <row label="r92" >give</row>
  <row label="r93" >him</row>
  <row label="r94" >back</row>
  <row label="r95" >the</row>
  <row label="r96" >time</row>
  <row label="r97" >he's</row>
  <row label="r98" hottext:suffix_html="<br/>">done</row>
  <row label="r99" >Put</row>
  <row label="r100">him</row>
  <row label="r101">in</row>
  <row label="r102">a</row>
  <row label="r103">prison</row>
  <row label="r104">cell</row>
  <row label="r105">but</row>
  <row label="r106">one</row>
  <row label="r107">time</row>
  <row label="r108">he</row>
  <row label="r109">could-a</row>
  <row label="r110" hottext:suffix_html="<br/>">been</row>
  <row label="r111">The</row>
  <row label="r112">champion</row>
  <row label="r113">of</row>
  <row label="r114">the</row>
  <row label="r115" hottext:suffix_html=" <i class='fa-icon-quote-right' />&lt;br/&gt;<i class='fa-icon-music' />">world.</row>
</select>

5.1.2: Example 1 XML Code Description

Here's a brief description of each attribute that was added to create this style:

hottext:contentCSS="text-align: center;"
- This attribute was used to center the text displayed in the content area.
hottext:headerCSS="background: #acecef;"
- Instead of the default gray color, it was updated to a light blue color.
hottext:footerCSS="..."
- Using CSS, we styled the footer to look similar to the header.
hottext:markerCSS="border: 2px solid black;"
- We added emphasis to the marker buttons by adding a thicker black border
<choice ... hottext:marker_color="...">
- To be consistent, we arranged the marker buttons as presented in the title text. We overrode the default color values so that the participant could easily identify which button to use.
<row ... hottext:prefix_html="..."
- This attribute includes additional HTML code to be presented before the row text. The values provided here are not selectable.
- This helped us add fun icons to reflect that the text the participant is reading are lyrics from a song.
<row ... hottext:suffix_html="..."
- This attribute includes additional HTML code to be presented after the row text. The values provided here are not selectable.
- Lyrics should be read like a poem, so many line breaks were added according to the way the lyrics were written.

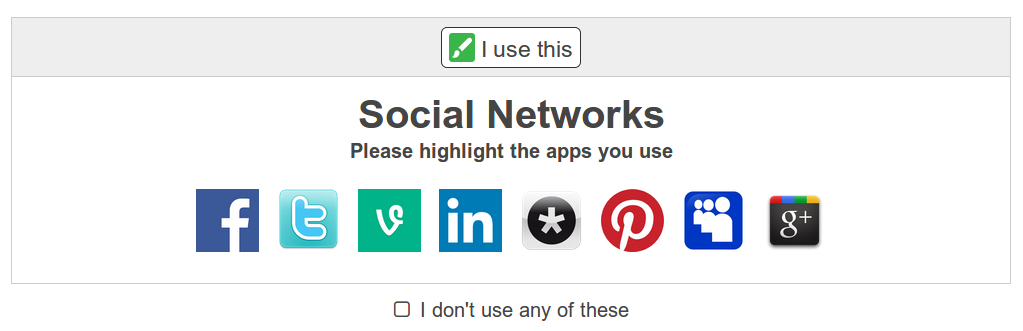

5.2: Example 2

In this example, there are images that can be highlighted and certain text that cannot be selected. For participants who have not used any of the social networks provided, an opt-out option has been included. See the XML code below.

5.2.1: Example 2 XML Code

<select label="Q2" optional="0" title=" " alt="Social Networks"
    uses="hottext.1"
    hottext:contentCSS="text-align: center;">
  <choice label="ch1">I use this</choice>
  <row label="r0" hottext:disable="1">
<h1 class="large-text">Social Networks</h1></row>
  <row label="r1">
  <hottext:prefix_html><![CDATA[
      <h2 class="medium-text">Please highlight the apps you use</h2>
  ]]></hottext:prefix_html>
                        <img src="[rel facebook.png]" class="icon" /></row>
  <row label="r2"><img src="[rel twitter.png]" class="icon" /></row>
  <row label="r3"><img src="[rel vine.png]" class="icon" /></row>
  <row label="r4"><img src="[rel linkedin.png]" class="icon" /></row>
  <row label="r5"><img src="[rel diaspora.png]" class="icon" /></row>
  <row label="r6"><img src="[rel pinterest.png]" class="icon" /></row>
  <row label="r7"><img src="[rel myspace.png]" class="icon" /></row>
  <row label="r8"><img src="[rel google.png]" class="icon" /></row>
  <noanswer label="r99">I don't use any of these</noanswer>
</select>

<style name='respview.client.css' with="Q2"> <![CDATA[
<style>
  .icon { width: 50px; }
  .large-text { font-size: 32px; margin-bottom: 10px; }
  .medium-text { font-size: 16px; }
</style>
]]></style>
<suspend/>

5.2.2: Example 2 XML Code Description
