The <checkbox> element represents the only multiple-selection question type available.
<checkbox label="Q1" atleast="1">
<title>
In the past 7 days, when did you eat the following meals?
</title>
<comment>Please select all that apply</comment>
<col label="c1">Monday</col>
<col label="c2">Tuesday</col>
<col label="c3">Wednesday</col>
<col label="c4">Thursday</col>
<col label="c5">Friday</col>
<col label="c6">Saturday</col>
<col label="c7">Sunday</col>
<col label="c99" exclusive="1"><b>None</b></col>
<row label="r1">Breakfast</row>
<row label="r2">Lunch</row>
<row label="r3">Dinner</row>
</checkbox>

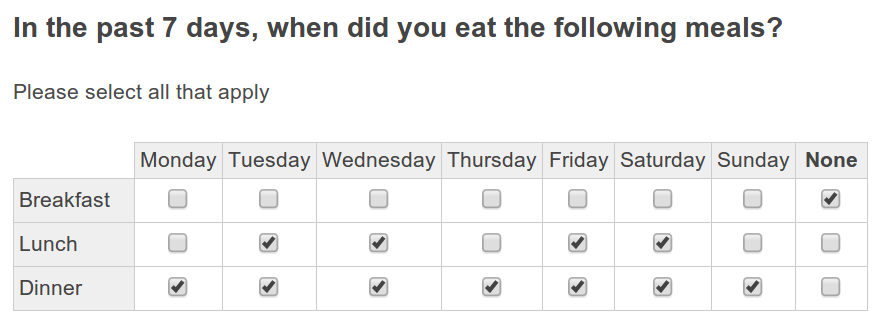

A participant may choose any number of the non-exclusive <row>/<col> elements.
By default, multi-select questions are optional. There are three attributes available to force a certain number of responses: atleast, atmost & exactly.
1: Attributes
In addition to the Question Attributes, the following attributes are unique to the <checkbox> element:
1.1: atleast - Set the Minimum Number of Responses
The atleast attribute is an integer value that controls the minimum number of selections that must be selected in order to continue.
<checkbox label="Q1" atleast="1">
atleast="1" means the participant is forced to select at least 1 answer for each row or column (depending on the Cell Grouping).
1.2: atmost - Set the Maximum Number of Responses
The atmost attribute is an integer value that controls the maximum number of selections that must be selected in order to continue.
<checkbox label="Q1" atmost="5">
atmost="5" means the participant can select up to 5 answers for each row or column (depending on the Cell Grouping).
1.3: exactly - Set the Exact Number of Responses
The exactly attribute is an integer value that controls the total number of selections that must be selected in order to continue.
<checkbox label="Q1" exactly="3">
exactly="3" means the participant must select 3 answers for each row or column (depending on the Cell Grouping).
1.4: pipeMultiple - Choose Which Answer to Pipe
The pipeMultiple attribute applies to single-dimension <checkbox> questions containing only <row> elements.
By default, piping a <checkbox> question (e.g., [pipe: Q1]) will result in showing all of the elements that were selected (e.g., "Item 1, Item 2 and Item 3"). Specify pipeMultiple="ROWLABEL" to control which <row> element to pipe. For example:
<checkbox label="Q1" atleast="1" pipeMultiple="r3">
<title>Please select all that apply.</title>
<row label="r1">Item 1</row>
<row label="r2">Item 2</row>
<row label="r3">Item 3</row>
</checkbox>
<suspend/>
<html label="Q1_Selections" where="survey">
You selected [pipe: Q1]!
</html>
With pipeMultiple="r3" specified, "Item 3" will be piped into the comment if multiple selections are made.
If a single selection is made, then that selection will be piped into the comment and not r3's text.
Note: If pipeMultiple is applied to a two-dimensional <checkbox> element, the pipe will read "Multiple columns". In other words, use it only for single-dimension <checkbox> elements.
1.5: groupRestrict - Restrict Responses Into Groups
The groupRestrict attribute can be set to "none" or "cols". By default, groupRestrict="none" is specified.
If groupRestrict="cols" is specified, then each column element must belong to a <group> element and the question's checkbox inputs are transformed into radio inputs, allowing only one selection per group. For example:
<checkbox label="Q1" exactly="2" groupRestrict="cols">
<title>
Which days do you enjoy the following meals the most? Please select a weekday and weekend day.
</title>
<comment>Please select all that apply</comment>
<group label="g1">Weekdays</group>
<group label="g2">Weekend</group>
<col label="c1" groups="g1">Monday</col>
<col label="c2" groups="g1">Tuesday</col>
<col label="c3" groups="g1">Wednesday</col>
<col label="c4" groups="g1">Thursday</col>
<col label="c5" groups="g1">Friday</col>
<col label="c6" groups="g2">Saturday</col>
<col label="c7" groups="g2">Sunday</col>
<row label="r1">Breakfast</row>
<row label="r2">Lunch</row>
<row label="r3">Dinner</row>
</checkbox>

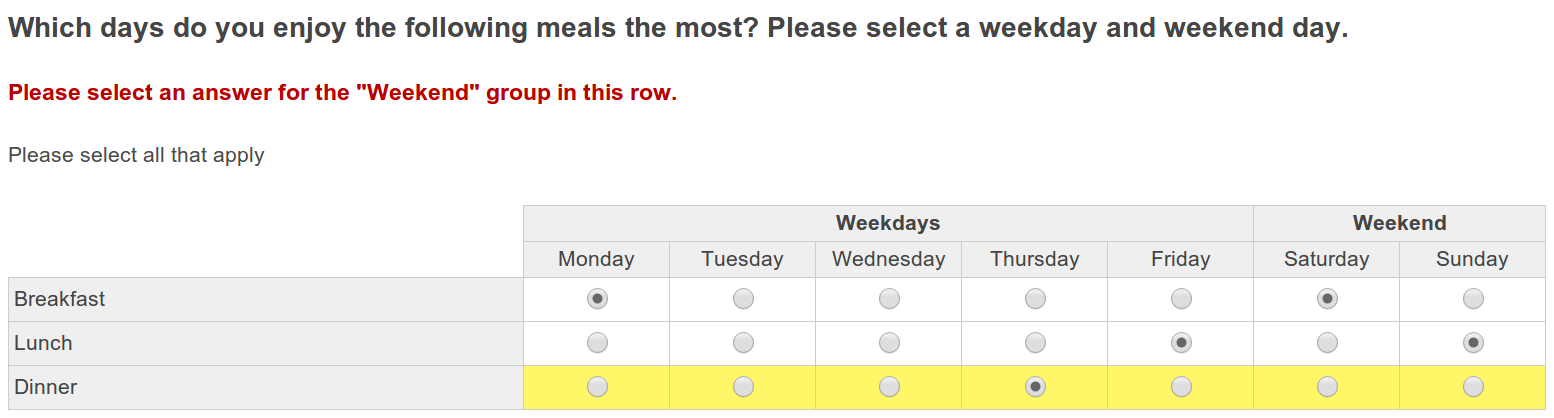

In the example above, two selections must be made per row, one for each group (i.e., a "Weekday" and a "Weekend").
1.6: trackHiddenCheckbox - Control How Data is Displayed for Hidden Checkbox Elements
For surveys with a compat level of 145+, the trackHiddenCheckbox attribute can be set to "on" or "off" for each hidden checkbox element. By default, trackHiddenCheckbox="on" is specified for all surveys with delphi="1".
When enabled, turns on tracking for hidden <checkbox> elements that contain response options with condition logic (i.e., where="execute", or where="report"). If the condition for a response option in the specified element is not met, that response option appears as a blank in reports, instead of appearing with a “0” value. When conditions are met, responses still appear with a “1” value.
Enabling trackHiddenCheckbox can help you cut down on the performance load for surveys containing <checkbox> elements with thousands of response options and conditions.
Note: Using the tv="off" attribute on a <checkbox> element with trackHiddenCheckbox="on" will disable trackHiddenCheckbox for that element.
2: Autofill a Single Checkbox
For single dimensional <checkbox> questions (e.g., only <row> or only <col> elements), you may supply autofill="CONDITION" to automatically select the checkbox option.
For example:
<checkbox label="Q1" atleast="1">
<title>Please select all that apply.</title>
<row label="r1">Option 1</row>
<row label="r2">Option 2</row>
<row label="r3">Option 3</row>
<row label="r4">Option 4</row>
<row label="r5" exclusive="1" autofill="1">None of these</row>
</checkbox>

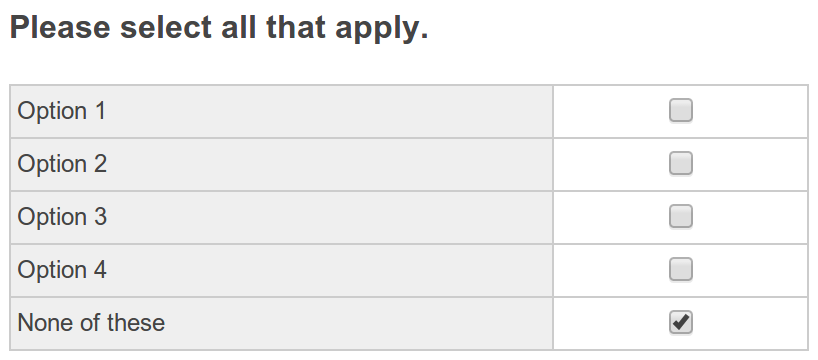

In this example, the option for "None of these" will be checked automatically since the condition is always True.

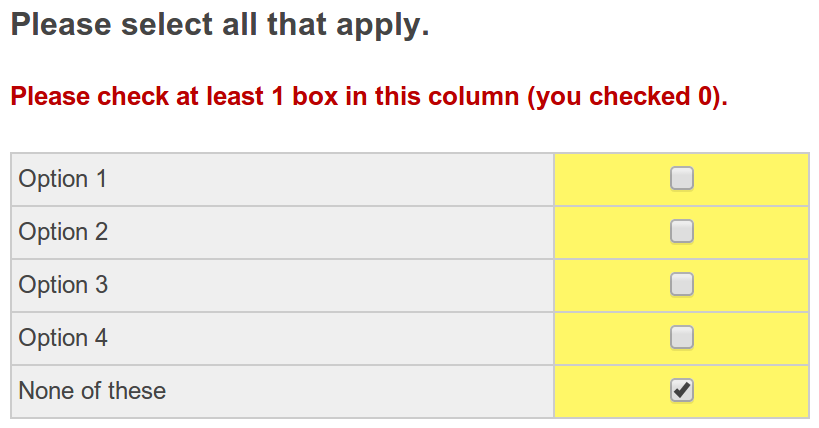

Important: If an error is displayed (e.g., did not select a value), the autofill attribute will be re-evaluated and auto-select the auto-filled element again.
You may supply any normal condition logic to the autofill attribute.
Note: The autofill attribute does not support vector logic.
For example:
<checkbox label="vQ1" atleast="1" where="execute">
<title>AUTOCODED</title>
<row label="r1" autofill="S1.r1 and S1.r2">Selected S1.r1 and S1.r2</row>
<row label="r2" autofill="AGE.check('18-25')">AGE is 18-25</row>
<row label="r3" autofill="S2.c4 or S2.c5">Is happy with the survey.</row>
<row label="r4" autofill="S5.val == None">Did not provide a dollar amount.</row>
</checkbox>
Since this only works for one-dimensional <checkbox> elements, you can achieve the same thing using an <exec> element. Here's the same example above written with an <exec> block:
<exec>if S1.r1 and S1.r2:
vQ1.r1.val = 1
if S1.r1 and AGE.check("18-25"):
vQ1.r2.val = 1
if S2.c4 or S2.c5:
vQ1.r3.val = 1
if not S5.val:
vQ1.r4.val = 1
</exec>
<checkbox label="vQ1" atleast="1" where="execute">
<title>AUTOCODED</title>
<row label="r1">Selected S1.r1 and S1.r2</row>
<row label="r2">AGE is 18-25</row>
<row label="r3">Is happy with the survey.</row>
<row label="r4">Did not provide a dollar amount.</row>
</checkbox>
