QuantText Element

The QuantText element allows researchers to incorporate real-time one-on-one interview sessions into a quantitative online survey.

Example:

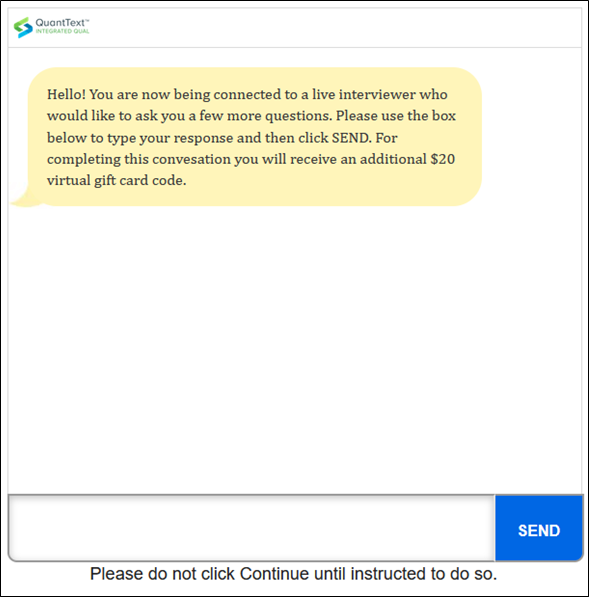

The is an example of what will show on the participant’s screen as the interview session begins. The HTML code provided by QuantText™ by Schlesinger Group produces the screen below within the Decipher survey.

If a moderator is not available or the chat quota has been filled, a message like the one shown below will appear on the screen asking the participant to please hit the “Continue" button.

1: First Steps

1.1: Notify Your QuantText Contact

Before you add the QuantText element, you must first contact your QuantText™ by Schlesinger Group representative. They will provide you with the script URL you will need to insert into the Decipher logic node.

1.2: Pulling the Survey Datamap

If you would like the QuantText™ representative who will be chatting with participants to know what each participant answered in questions preceding the chat session, you will need to send those questions to QuantText beforehand.

To do this, click the Actions menu for the project and select “Export Survey” from the drop-down menu. In the Export Survey window, select "Text" from the available formats. The datamap for your survey will appear in your browser window, including the survey text and corresponding labels. You can then copy the desired questions and email them to your QuantText™ representative.

This information will be used to create a unique URL for you to enter in the QuantText element, as explained in the steps below. When the chat box is shown to a participant, their answers to those questions will be passed to the representative chatting with them. It will also be used by QuantText to keep counts and track quotas on the number of completed chats.

2: Adding an QuantText Element

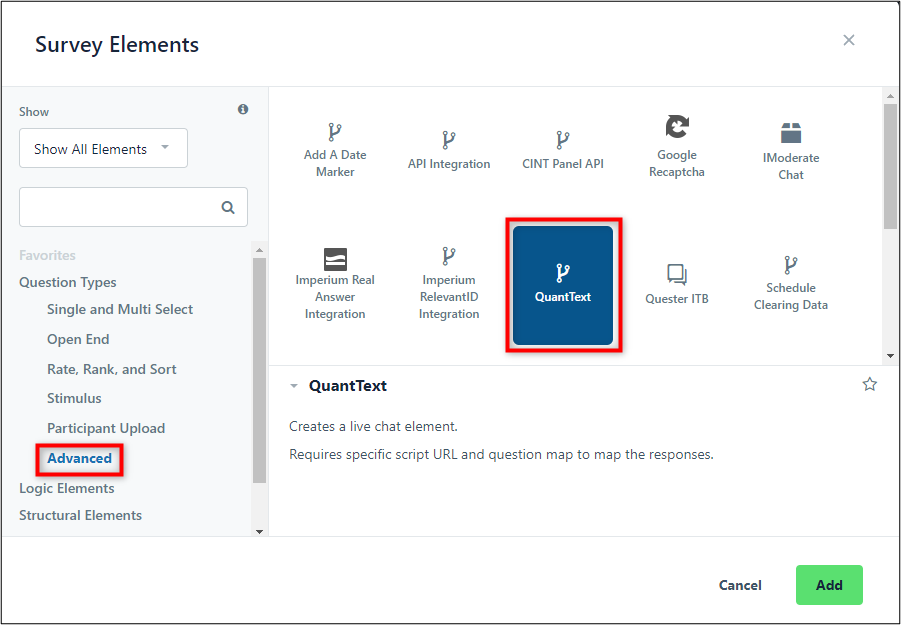

To insert the QuantText element, add a new survey element, select the “Advanced” tab and select the QuantText Logic Node.

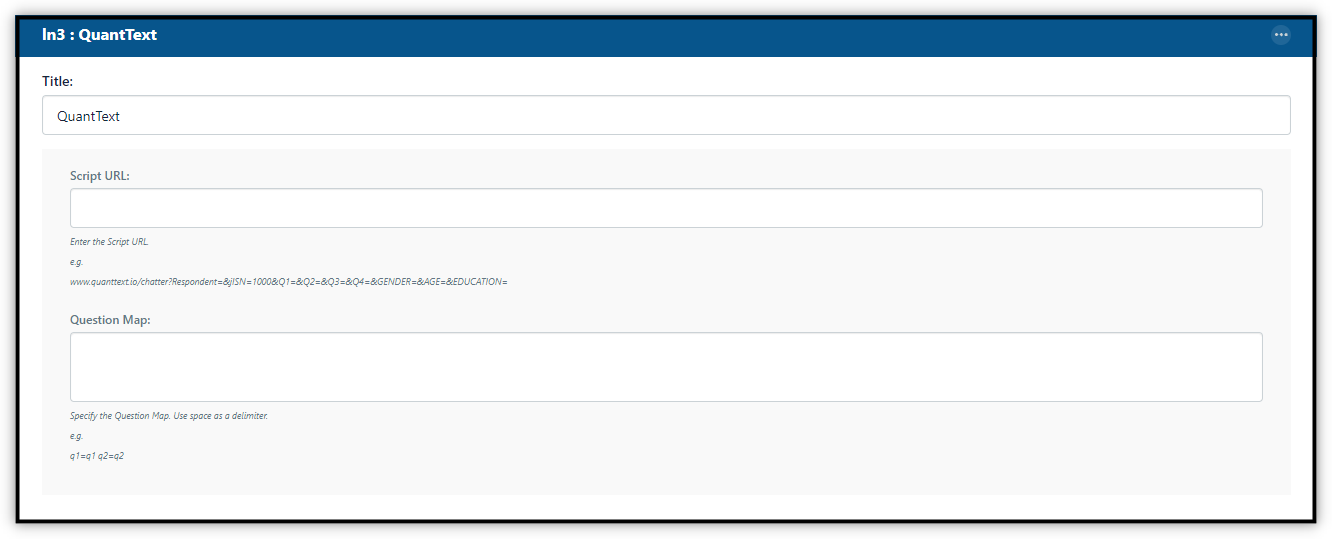

Once inserted, the following logic node will appear with a Script URL field and a Question Map field.

2.1: Script URL

To have the participant's data inserted into the script URL, you need to tell Decipher which survey elements to retrieve the data from for each parameter in the URL.

The URL of the script tag (provided by QuantText™ by Schlesinger Group) should be entered in the "Script URL" field. When you receive the URL from QuantText, it may still contain some extra JavaScript language around the actual URL.

In this example, you would remove everything except the URL:

<script type="text/javascript" scr="//www.quanttext.io/chatter?Respondent=&jISN=1000&Q1=&Q2=&Q3=&Q4=&GENDER=&AGE=&EDUCATION="></script>

The URL should look as follows once the JavaScript is removed:

//www.quanttext.io/chatter?Respondent=&jISN=1000&Q1=&Q2=&Q3=&Q4=&GENDER=&AGE=&EDUCATION=

Be sure to make no other changes to the URL other than copying from the script tag and pasting it into the custom element unless you are moving an open-ended question to the end of the URL.

If you do want to pass responses to an open-ended question to QuantText, you must move that question to the end of the URL. The URL can only pass up to 2,000 characters, and by moving the open-ended question to the end of the URL, you can ensure that the rest of the participant's data is communicated to QuantText if the participant writes a long response and part of the answer is cut off.

Using the same example, q3 is an open-ended text question, so you would move &q3= to the last position in the URL:

//www.quanttext.io/chatter?Respondent=&jISN=1000&Q1=&Q2=&Q4=&GENDER=&AGE=&EDUCATION=&Q3='

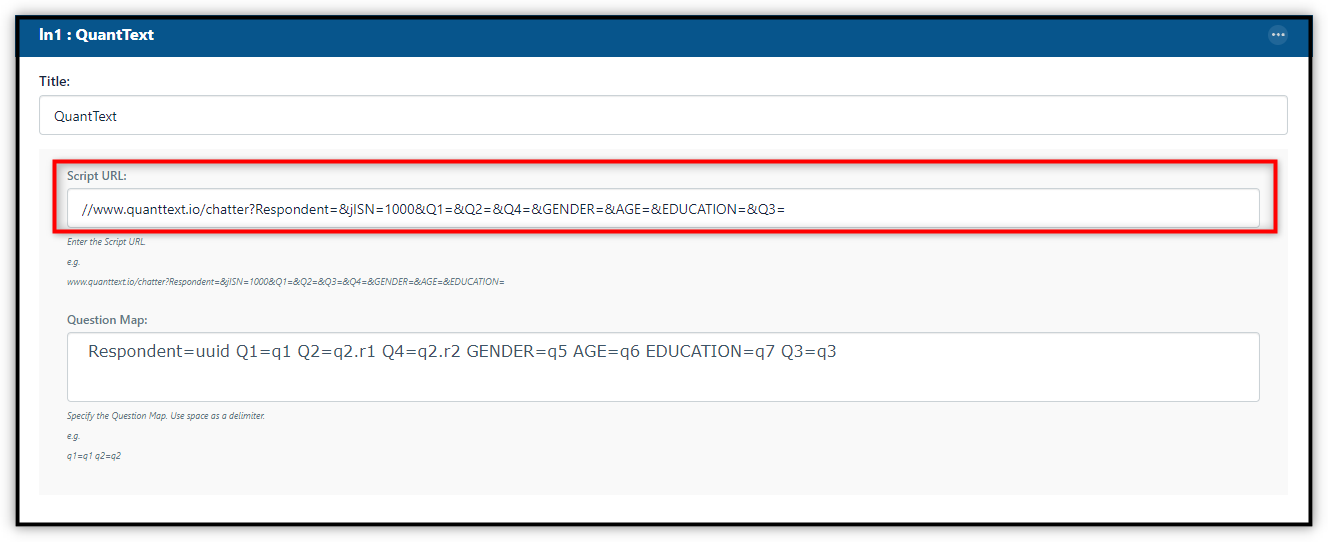

Once you have made the necessary changes, paste the URL into the “Script URL" field.

2.2: Question Map

The question map tells Decipher which survey element to retrieve the data from for each variable being requested in the URL. You will have to specify instructions for each variable in the URL after the question mark ("?"), excluding the "jISN" variable because it is not a variable in the survey. QuantText uses the "jISN" value to identify the survey.

Define these variables by specifying them in a space delimited format for each URL parameter.

Start by entering each variable in the "Question Map" field, followed by an equals sign (=). This is case-sensitive so you must enter the variables exactly as they appear in the URL.

At the other end of each equals sign, you need to tell Decipher which question in the survey it should pull the responses from.

The first variable is Respondent=. You can use any unique identifier collected in the survey data from your sample source lists (e.g., a participant source unique variable), or simply use the uuid.

From there, specify where all other variables are pulling from.

It is helpful to have the datamap open so you can easily find the question labels. To open the datamap, return to the primary page of your survey. Click the Actions menu for the project and select “Export Survey” from the drop-down menu. In the Export Survey window, select "Text" from the available formats. The datamap for your survey will appear in your browser window, including the survey text and corresponding labels.

Tip: Single-dimensional questions only require the question label because there is only one option to pull the answers from. For multi-dimensional questions, specify the row or column that the responses should be pulled from.

Using the same example:

• Q1 and Q3 are single-dimensional questions, meaning they only contain rows or columns. You only need to enter the question label for Decipher to know what information to pass.
• Q2 and Q4 are 2-dimensional grid questions, meaning they have to be broken out by row in order to pass the columns selected for those rows. A grid question may also be grouped by columns, meaning you would enter the [question label].[column label] and this would result in passing the row response for each column.

If you are unsure how to enter the labels for a question, click here to jump to a table that describes the different configurations.

3: Testing

You will need to schedule a time with QuantText™ by Schlesinger Group to review the content. If you test the survey at any other time, you will see a placeholder message where the chat will occur.

At the scheduled time, test the survey and when you reach the chat element, the QuantText window will appear and the representative will be able to confirm that the implementation worked and they have received the values from all of the URL variables.

4: References

4.1: Question Configurations for the Question Map

This table describes the different configurations between question types and their answer options.

Question Type	Dimension	Question Map Example	Passed in URL
Respondent Identifier	N/A	=UUID	12345
Single-select	1-dimensional (rows or columns)	=q1	r2 (if rows) c3 (if columns)
	2-dimensional (rows and columns)	=q1.r1 (if "grouped by" rows) =q1.c1 (if "grouped by" columns)	c3 r2
Multi-select	1-dimensional (rows or columns)	=q1 (to pass the selected row or column label)	r2 (if rows) c2 (if columns)
	1-dimensional (rows or columns)	This configuration allows you to specify a specific row or column and will pass a 0 if it's not checked or 1 if checked. =q1.r2 =q1.c2	0 (not selected) 1 (selected)
	2-dimensional (rows and columns)	=q1.r1 (if "grouped by" rows) =q1.c1 (if "grouped by" columns)	c3 r2
	2-dimensional (rows and columns)	This configuration allows you to specify a specific row or column and will pass a 0 if it's not checked or 1 if checked. =q1.r2.c1 =q1.c2.r1	0 (not selected) 1 (selected)
Select (drop-down)	1-dimensional single dropdown (choices with no rows or columns)	=q1	ch2
	2-dimensional (choices, with rows or columns)	=q1.r1 (if "grouped by" rows) =q1.c1 (if "grouped by" columns)	ch2
	3-dimensional (choices, rows and columns)	=q1.r2.c1	ch2
Text or Number	1-dimensional single answer field (no rows or columns)	=q1	open-ended response or number value
	1-dimensional (rows or columns)	=q1.r1 (if rows) =q1.c2 (if columns)	open-ended response or number value
	2-dimensional (rows and columns)	=q1.r1.c1	open-ended response or number value
Autofill	1-dimensional (single classification)	=q3.r1	0 (not selected) 1 (selected)
	1-dimensional (multiple classifications)	=q3	r1,r3,r7
