The Less Styles System

1:  Overview

Note:  The Less Styles system requires a survey compat level of 125+.

To best accommodate the diversity of today's internet users, your surveys should always meet the following requirements:

• Look consistent on all supported devices, big and small.
• React predictably to user interaction.
• Collect data without introducing unnecessary survey bias.
• Be flexible, allowing changes to be made quickly and easily.

While there is no one-size-fits-all method or solution for accomplishing this, you can use the Less Styles system to help streamline your survey customization efforts.

The Less Styles system allows you to declare variables and nest declarations to do some really neat things, like modifying large numbers of survey style attributes or changing the color of all your survey's dynamic question buttons by updating a single variable.

2:  What is Less?

The Less (Leaner CSS) Style system is an open-source dynamic stylesheet language that allows you to create advanced CSS styles. Less works by providing a number of site layouts adapted to various screen widths and then serving those layouts by compiling your styles into CSS using CSS3 media queries.

Less has built-in components that drastically improve the existing Decipher style system, including advanced style variables, nesting abilities, mix-ins, operators, and functions.

For example, imagine you wanted to declare the color and other attributes for a global header style. You might input the following Less code:

@color: #5dff00;                    /* declare variables */

#header {
    color: @color;

    .label {                        /* nest declarations */
        color: @color;
        font-style: italic;
    }
}

The Less Style system would then take this code, compile it and output the following CSS for you:

#header {
    color: #5dff00;
}

#header .label {
    color: #5dff00;
    font-style: italic;
}

Tip: Check out Getting Started with Less to learn more about Less syntax and usage.

3:  The Less Theme System

Less themes are available to surveys with a compat level of 125+. These themes are designed with responsiveness in mind and they enable you to control how your survey looks and performs on supported devices.

Note:  Older "legacy" themes are still available with compat 128 and earlier.

3.1:  Accessing the Theme Editor

Click "Themes" under "Build" in the navigation menu to access the Theme Editor.

A survey using one of these Less themes will have a file named theme.less in its static directory. This file is compiled with the system's base Less files (and any additional Less files or variables that you may have declared) into a file named less-compiled.css. This file acts as the survey's main style file and is served to all participants.

View the theme.less template that contains documentation for its usage.

Note:  One file to rule them all: Less themes use CSS3 media queries to alter the survey layout depending on the display size of the device being used. This means that there is no need for separate style files for mobile phones, tablets, etc.

The responsive design introduced by Less themes means that the same survey content will be presented differently (but similarly) on devices of different sizes. This includes resizing content and folding large, horizontal tables into vertical, easy-to-scroll-through lists.

You have access to various Less attributes that enable you to change the way in which the system reacts to devices dimensions. For example, you can update the @breakpoint variable which is used to decide whether the device being used is a desktop or mobile device from "768px" to any size that meets the requirements of your project.

4:  Less XML Attributes

4.1:  <themevars> - Override Theme Variables

The <themevars> attribute is used to override any of the Less variables in the tables below with a new value. This attribute is referenced last in the Less system, which means that it has the highest precedence and will override all Less stylesheets.

The syntax for the <themevars> attribute is below:

<themevars>
    <themevar name="VARIABLE NAME">VALUE</themevar>
</themevars>

For example, you can use the following to produce a dark survey theme with Comic Sans as the primary font:

<themevars>
    <themevar name="background-color">#000</themevar>
    <themevar name="foreground-color">#000</themevar>
    <themevar name="text-color">#fff</themevar>
    <themevar name="primary-font-stack">"Comic Sans MS", cursive, sans-serif</themevar>
</themevars>

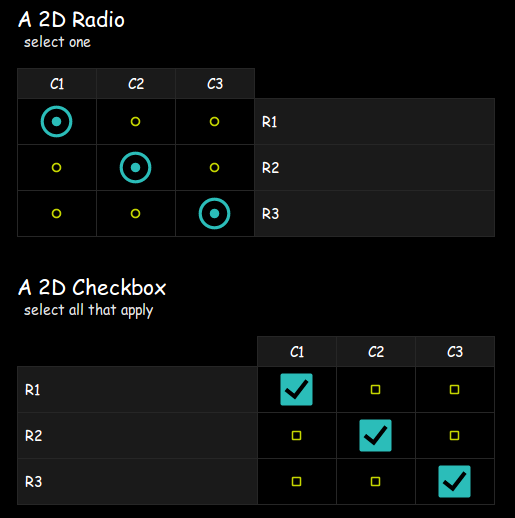

With this theme applied, survey participants would see the following:

Important: Do not include the "@" symbol when overriding any of the variables in the tables below.

4.1.1:  Basic Colors

The following variables update the survey's main colors.

Variable	Description
@background-color	The survey background color
@foreground-color	The survey foreground color
@text-color	The survey text color
@border-color	The survey table border color
@question-background	The survey question background color

4.1.2:  Palette Colors

The following variables update the survey's secondary colors and can be used anywhere in a theme. Most themes utilize only one or two, ignoring the rest.

Tip: As when applying any survey style, the goal when adding palette colors is to ensure consistency. You should use only the colors picked here throughout the survey theme.

Variable	Description
@color-1	First secondary coordinated color
@color-2	Second secondary coordinated color
@color-3	Third secondary coordinated color
@color-4	Fourth secondary coordinated color
@color-5	Fifth secondary coordinated color
@color-6	Sixth secondary coordinated color

4.1.3:  Button Colors

The following variables update the survey's button colors.

Variable	Description
@button-color	The survey's button default color
@button-hover-color	The survey's button hover color
@button-selected-color	The survey's button selected color
@button-text-color	The survey's button text default color
@button-text-hover-color	The survey's button text hover color
@button-text-selected-color	The survey's button text selected color

4.1.4:  Hyperlink Colors

The following variables update the survey's hyperlink colors.

Note:  Footer links may have their own variables, though they typically inherit their color from these variables.

Variable	Description
@link-color	The hyperlink text color
@link-color-hover	The hyperlink text hover color

4.1.5:  Message Colors

The following variables update the survey's message colors.

Variable	Description
@error-color	The error message color
@warning-color	The warning message color
@info-color	The info message color

4.1.6:  DQ Like/Dislike/Neutral Colors

The following variables update the "Like"/"Dislike"/"Neutral" colors used in some dynamic questions.

Variable	Description
@dq-like	The DQ "Like" color
@dq-neutral	The DQ "Neutral" color
@dq-dislike	The DQ "Dislike" color



4.1.7:  Font Families

The following variables update the survey's font family.

Variable	Description
@webfont	The survey's webfont URL (must be blank or start with "//")
@primary-font-family	The survey's primary font-family (for questions/comments)
@secondary-font-family	The survey's secondary font-family (for answers, footer, buttons, progress, etc.)

4.1.8:  Base Font Sizes

The following variables update the survey's base font sizes.

Tip: Use "em" or "rem" font sizes to help ensure that your survey is accessible to all users.

Variable	Description
@desktop-font-size	The survey font-size for desktop devices
@mobile-font-size	The survey font-size for mobile devices

4.1.9:  Reusable Font Sizes

The following variables are meant to be reused throughout the theme for consistent font sizing.

Tip: Use “em” or “rem” font sizes to help ensure that your survey is accessible to all users.

Variable	Description
@large-text	The “large” font-size that can be reused anywhere in the theme
@normal-text	The “normal” font-size that can be reused anywhere in the theme
@small-text	The “small” font-size that can be reused anywhere in the theme

4.1.10:  Background Image

The following variable updates the survey's background image (implemented in select themes only, other themes will ignore this variable).

Variable	Description
@page-background-image	The survey's background image URL

4.1.11:  Border Radius

The following variables update the survey's border radii.

Variable	Description
@border-radius	The default border radius for the foreground and all buttons
@foreground-border-radius	The border radius for the foreground only

4.1.12:  Media Queries

The following variables update the survey's responsive threshold.

Variable	Description
@breakpoint	The width in which a device is considered a desktop (default is "768px")
@desktop	A boolean value used to declare desktop-only styles. For example: @media @desktop { .desktop-only-class { color: blue; } }
@mobile	A boolean value used to declare mobile-only styles. For example: @media @mobile { .mobile-only-class { color: blue; } }

4.1.13:  Foreground Width & Padding

The following variables update the survey's foreground width and padding.

Variable	Description
@foreground-width	The maximum width for the survey (default is "960px")
@foreground-padding-top-bottom	The foreground top/bottom padding
@foreground-padding-left-right-desktop	The foreground left/right padding on desktop devices
@foreground-padding-left-right-mobile	The foreground left/right padding on mobile devices
@foreground-inner-width	The foreground maximum content width

4.1.14:  Question Width & Padding

The following variables update the width and padding of the survey’s questions.

Variable	Description
@question-padding-top-bottom	The question top/bottom padding
@question-padding-left-right-desktop	The question left/right padding on desktop devices
@question-padding-left-right-mobile	The question left/right padding on mobile devices
@question-inner-width	The question maximum content width

4.1.15:  Progress Bar

The following variables update the survey's progress bar formatting.

Variable	Description
@progress-position	The progress bar position (usually "left" or "right")
@progress-border-color	The progress bar border-color
@progress-empty-color	The progress bar "empty" color
@progress-fill-color	The progress bar "filled" color
@progress-text-color	The progress bar text color
@progress-font-size	The progress bar font size
@progress-font-family	The progress bar font family

4.1.16:  Comment Text

The following variables update the text formatting for the survey’s comments. In the Survey Editor, you can add comment text with the "Descriptive Content" element. In the XML, the <html> tag is used to add comment text.

Variable	Description
@comment-text-color	The comment text color
@comment-font-size	The comment font size
@comment-font-family	The comment font family

4.1.17:  Question Text

The following variables update the text formatting of the survey's questions.

Variable	Description
@question-text-color	The question text color
@question-font-size	The question font size
@question-font-family	The question font family

4.1.18:  Instruction Text

The following variables update the text formatting of the survey’s instructions.

Variable	Description
@instruction-text-color	The instruction text color
@instruction-font-size	The instruction font size
@instruction-font-family	The instruction font family

4.1.19:  Answer Text

The following variables update the text formatting of the survey’s response options.

Variable	Description
@answer-text-color	The answer text color
@answer-font-size	The answer font size
@answer-font-family	The answer font family

4.1.20: Table Colors

The following variables update the colors of any survey tables.

Variable	Description
@table-border-color	The border color of tables
@table-legend-bg-color	The default background color of legend cells
@table-row-legend-bg-color	The background color of row legend cells
@table-col-legend-bg-color	The background color of col legend cells
@table-row-group-bg-color	The background color of row group legend cells
@table-col-group-bg-color	The background color of col group legend cells
@table-cell-hover-color	The hover background color of form element cells

4.1.21:  Row Override Colors

The following variables override the background colors of rows with form elements.

Note: The variable @table-row-legend-bg-color is ignored when these variables are set, so alternating row colors can be easily applied.

Variable	Description
@row-bg-color	The default background color for odd and even-numbered rows
@row-bg-color-alt	The background color for odd-numbered rows only

4.1.22: Text Inputs

The following variables update the formatting of the survey’s open-ended text boxes.

Variable	Description
@input-text-color	The input text color
@input-font-size	The input font size
@input-bg-color	The input background-color
@input-bg-color-active	The input "active" background-color
@input-border-color	The input border-color
@input-border-color-active	The input "active" border-color

4.1.23: Primary Button Colors

The following variables update the survey's primary button colors ("Continue", "Finish", etc.).

Variable	Description
@primary-button-text-color	The primary button text color
@primary-button-text-color-hover	The primary button text hover color
@primary-button-font-size	The primary button font size
@primary-button-font-family	The primary button font family
@primary-button-bg-color	The primary button color background-color
@primary-button-bg-color-hover	The primary button color background hover color
@primary-button-border-color	The primary button border-color
@primary-button-border-color-hover	The primary button border hover color
@primary-button-border-radius	The primary button border-radius

4.1.24:  Secondary Button Colors

The following variables update the survey's secondary button colors ("Go Back", "Randomize", etc).

Variable	Description
@secondary-button-text-color	The secondary button text color
@secondary-button-text-color-hover	The secondary button text hover color
@secondary-button-font-size	The secondary button font size
@secondary-button-font-family	The secondary button font family
@secondary-button-bg-color	The secondary button color background-color
@secondary-button-bg-color-hover	The secondary button color background hover color
@secondary-button-border-color	The secondary button border-color
@secondary-button-border-color-hover	The secondary button border hover color
@secondary-button-border-radius	The secondary button border-radius

4.1.25:  DQ Buttons

The following variables update the button colors for any Dynamic Questions (Button Select, etc.) added to the survey.

Variable	Description
@dq-button-font-size	The DQ button font size
@dq-button-font-family	The DQ button font family
@dq-button-text-color	The DQ button text color
@dq-button-text-color-hover	The DQ button text hover color
@dq-button-text-color-selected	The DQ button selected text color
@dq-button-bg-color	The DG button background-color
@dq-button-bg-color-hover	The DQ button background hover color
@dq-button-bg-selected	The DQ button background selected color
@dq-button-border-color	The DQ button border-color
@dq-button-border-color-hover	The DQ button border hover color
@dq-button-border-color-selected	The DQ button border selected color
@dq-button-border-radius	The DQ button border-radius

4.1.26:  FIR (Form Image Replacement)

The following variables update the survey's FIR colors (its stylized radio buttons and checkboxes).

Variable	Description
@fir-border	The FIR border-color
@fir-border-hover	The FIR border hover color
@fir-border-selected	The FIR border selected color
@fir-base	The FIR background-color
@fir-base-hover	The FIR background hover color
@fir-base-selected	The FIR background selected color
@fir-inner	The FIR foreground color
@fir-inner-hover	The FIR foreground hover color
@fir-inner-selected	The FIR foreground selected color
@fir-size	The FIR size

4.1.27:  Footer Text

The following variables update the survey's footer text formatting.

Variable	Description
@footer-text-color	The footer text color
@footer-font-size	The footer font size
@footer-font-family	The footer font family
@footer-link-color	The footer link text color
@footer-link-color-hover	The footer link text hover color

4.1.28:  Exit Page Text

The following variables update the survey's exit page text formatting.

Variable	Description
@exit-header-text-color	The exit page header's text color
@exit-header-font-size	The exit page header's font size
@exit-header-font-family	The exit page header's font family
@exit-body-text-color	The exit page body's text color
@exit-body-font-size	The exit page body's font size
@exit-body-font-family	The exit page body's font family

4.1.29:  Survey Error Colors

The following variables update the survey's page-level error message colors.

Variable	Description
@survey-error-text-color	The page-level error text color
@survey-error-font-size	The page-level error font size
@survey-error-font-family	The page-level error font family
@survey-error-bg-color	The page-level error background-color

4.1.30: Question Error Colors

The following variables update the survey's question-level error message colors.

Variable	Description
@question-error-text-color	The question-level error text color
@question-error-font-size	The question-level error font size
@question-error-font-family	The question-level error font family
@question-error-bg-color	The question-level error background color

4.1.31:  Answer Error Highlight Color

The following variable updates the survey's answer-level error color. This variable is used to "highlight" the individual form elements or their parent cells (if any) that are in error.

Variable	Description
@answer-error-highlight-color	The answer-level error background-color

4.1.32:  Info Colors

The following variables update the survey's info message colors.

Variable	Description
@survey-info-text-color	The info message text color
@survey-info-font-size	The info message font size
@survey-info-font-family	The info message font family
@survey-info-bg-color	The info message background-color

4.1.33:  Warning Colors

The following variables that update the survey's warning message colors.

Variable	Description
@survey-warning-text-color	The warning message text color
@survey-warning-font-size	The warning message font size
@survey-warning-font-family	The warning message font family
@survey-warning-bg-color	The warning message background-color

4.1.34:  Button Select

The following variables update various settings in the Button Select Dynamic Question style.

Variable	Description
@btn-select-default-max-width	The Button Select maximum button width
@btn-select-spacing	The Button Select spacing around buttons (left/right values are stripped in list mode)
@btn-select-border-radius	The Button Select button border-radius

4.2:  Include Custom Less Stylesheets

The ss:includeLESS attribute enables you to load additional Less files into your survey. These files will take precedence over the project's theme and must be located in the same directory as the survey or in its parent directory within a static/ directory.

For example, if you wanted to load two different Less files from the survey located at selfserve/9d3/p1234, you would input the following:

<survey
  name="Survey"
  compat="125"
  ss:includeLESS="p1234/style1.less,/survey/selfserve/9d3/p1234/style2.less"
  ...>

In the above example, two different path schemes are used to load two different Less files from the project. The following values for ss:includeLESS are also valid:

ss:includeLESS="p1234/style1.less"
ss:includeLESS="/survey/selfserve/9d3/p1234/style1.less"

ss:includeLESS="p1234/style1.less,p1234/style2.less"
ss:includeLESS="/survey/selfserve/9d3/p1234/style1.less,/survey/selfserve/9d3/p1234/style2.less"

Note: The p1234/style1.less syntax is not compatible with the XML Editor. If working in the survey XML, use the /survey/selfserve/9d3/p1234/style1.less syntax instead.

Learn more: Uploading System Files

4.3:  Include Custom Less Stylesheets

If you need to load additional Less files to many projects, you can use the nstyles file to specify these additional files to the respview.client.less.files attribute.

For example, you can load the same two Less files as above by specifying the following in your project's nstyles file:

*respview.client.less.files:
selfserve/9d3/p1234/static/style1.less
selfserve/53a/p5678/static/style2.less

Note: The nstyles file must be located in the project (e.g., selfserve/53a/p1234/) or company (e.g., selfserve/53a/) directory.

5:  XML Attributes for Display Settings

5.1:  Optimize Question Presentation

The surveyDisplay attribute can be set to "auto", "mobile", "desktop", or "none" to control the main <survey> element to affect all survey questions and/or locally at the question level.

The default value for surveyDisplay is "auto" at the global level and "none" at the local level.

Otherwise, the following rules apply:

• If surveyDisplay="mobile" is specified, then the survey will display questions in a mobile-optimized format.
• If surveyDisplay="desktop" is specified, then the survey will not optimize the way in which questions are displayed for mobile devices.
• If surveyDisplay="none" is specified at the local level, then that particular question will display in the same way as specified by the surveyDisplay attribute in the main <survey> element.
• If surveyDisplay="auto" is specified, then questions will display in a responsive manner. When the display is relatively small, the questions will display in the mobile-optimized format. When the display has enough room, the questions will be displayed without any mobile optimizations.

Note: For surveys with a compat level of 126 (compat="126"), all column headers are optimized to display with the same width (i.e., no column should be wider or thinner than another). If your survey contains very wide column headers due to very long words or if you wish to turn off this column width optimization, then add ss:questionClassNames="skipAutosize" to the question (e.g., <radio label="Q10" ss:questionClassNames="skipAutosize">).

Note: The surveyDisplay attribute can also be controlled from the Device Settings or Question Display Options in the Survey Editor.

5.2:  Display One-Column Questions Differently

The ss:listDisplay attribute is a boolean value that controls how one-column questions are displayed. This attribute can be applied globally to the main <survey> element to affect all questions and/or locally at the question level. If ss:listDisplay="1" is specified, then one-column questions will appear as a list instead of a table.

For example:

<survey
  name="Survey"
  compat="125"
  ss:listDisplay="1"
  ...>

<radio label="Q1" title="Please select one.">
  <row label="r1">R1</row>
  <row label="r2">R2</row>
  <row label="r3">R3</row>
</radio>

<radio label="Q2" title="Please select one." ss:listDisplay="0">
  <row label="r1">R1</row>
  <row label="r2">R2</row>
  <row label="r3">R3</row>
</radio>

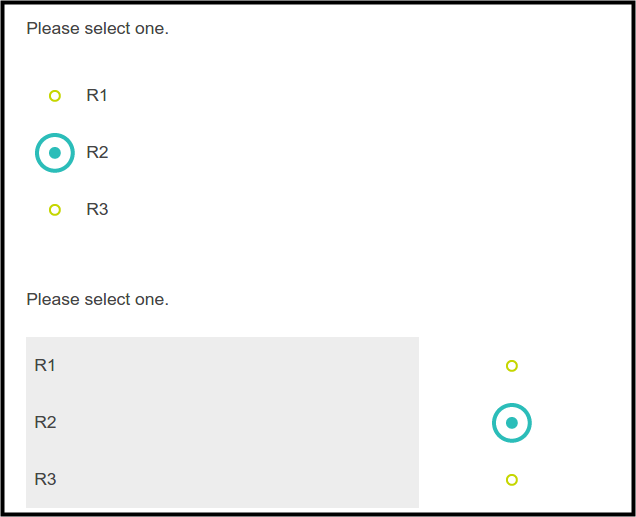

The code above produces the following result:

Note:  The ss:listDisplay attribute can also be controlled from Configuring Survey Display Settings or Question Display Options in the Survey Editor.
