You can add static files to a survey by placing them, along with any other project assets, in the /static directory of your project.
Static files may include:
- Images
- Custom JavaScript or CSS files
- HTML pages (e.g., disclaimers, rules, etc.)
- Any external file that a participant may view or access
Unlike your project's root directory, the /static directory is visible to the public and a great place to store these files and include them in your project. Any files placed in this directory can be referenced with the following link:
https://SURVEY.CNAME.com/survey/self...Y/PROJECT/FILE
Tip: Alternatively, you can upload files using the File Manager in the Portal. See Uploading System Files to learn more.
1: Including Static Files
To include a file from your project's /static directory in a survey, use the following syntax:
[rel FILENAME]
This returns the relative path to the file (e.g., /survey/selfserver/9d3/proj1234/logo.jpg).
1.1: Including Images
To add an image to your project, first upload the image to your project's /static directory and reference the image in your survey with the following syntax:
<img src="[rel IMAGE.PNG]" />
Your end result may look something like this:
<radio label="Q1" optional="0" shuffle="rows"> <title>Which of these toothbrush designs do you prefer?</title> <row label="r1"><img src="[rel toothbrush-1.jpg]" /></row> <row label="r2"><img src="[rel toothbrush-2.jpg]" /></row> <row label="r3"><img src="[rel our-toothbrush.png]" class="tbrush-img" /></row> </radio>
1.2: Including JavaScript
To include an external JavaScript file, you can use the XML Style System to override the respview.client.js style.
<style name='respview.client.js' mode="after"><![CDATA[
<script type="text/javascript" src="[rel JAVASCRIPT_FILENAME]"></script>
]]></style>
Note: Replace JAVASCRIPT_FILENAME with the name of your JavaScript file (e.g., "custom.js").
You can also include JavaScript directly in your survey using the same <style> element.
<style name='respview.client.js' mode="after"><![CDATA[
<script type="text/javascript" src="[rel JAVASCRIPT_FILENAME]"></script>
<script>
$ (function() {
// your code goes here
alert("JavaScript is running!");
});
</script>
]]></style>
Given below is a similar approach, but without the external JavaScript file and using wrap="ready":
<style name='respview.client.js' mode="after" wrap="ready"><![CDATA[
// your code goes here
alert("JavaScript is running!");
]]></style>
JavaScript files can also be loaded via the <survey> element's ss:customJS or ss:includeJS attributes.
1.3: Including CSS
To include an external CSS file, you can use the XML Style System and override the respview.client.css style:
<style name='respview.client.css' mode="after"><![CDATA[
<link rel="stylesheet" type="text/css" href="[rel CSS_FILENAME]" />
]]></style>
Note: Replace CSS_FILENAME with the name of your CSS file (e.g., "customStyle.css").
You can also include CSS directly in your survey using the same <style> element.
<style name='respview.client.css' mode="after"><![CDATA[
<link rel="stylesheet" type="text/css" href="[rel CSS_FILENAME]" />
<style>
/* your code goes here */
.row-legend {
font-weight: bold;
color: blue;
}
</style>
]]></style>
Given below is a similar approach, but without the external CSS file:
<style name='respview.client.css' mode="after"><![CDATA[
<style>
/* your code goes here */
.row-legend {
font-weight: bold;
color: blue;
}
</style>
]]></style>
CSS files can also be loaded via the <survey> element's ss:customCSS or ss:includeCSS attributes.
2: Example
You can combine all three techniques above and create a question that includes external images, a JavaScript file, and a CSS file.
In the example below, an image is included in all three rows of the question "Q1". You can use JavaScript / CSS to modify their look and feel. If you click an image, an alert will be shown with the image's relative path.
<style name='respview.client.js' mode="after" wrap="ready" with="Q1"><![CDATA[
var question = $ ("#question_Q1"),
answers = question.find(".answers");
answers.find("img").each(function() {
// when you click an image
// pop up an alert saying so with the relative path
$ (this).click(function() {
var this_images_classname = $ (this).prop('src'),
message = "You clicked ";
alert(message + this_images_classname);
});
});
]]></style>
<style name='respview.client.css' mode="after" with="Q1"><![CDATA[
<style>
.img {
width: 250px;
border: 3px solid black;
}
.i1 { border-color: red; }
.i2 { border-color: blue; }
.i3 { border-color: green; }
</style>
]]></style>
<radio label="Q1">
<title>
Which image do you prefer?
</title>
<comment>Please select one</comment>
<row label="r1"><img src="[rel placeholder.jpg]" class="img i1" /></row>
<row label="r2"><img src="[rel placeholder.jpg]" class="img i2" /></row>
<row label="r3"><img src="[rel placeholder.jpg]" class="img i3" /></row>
</radio>
<suspend/>

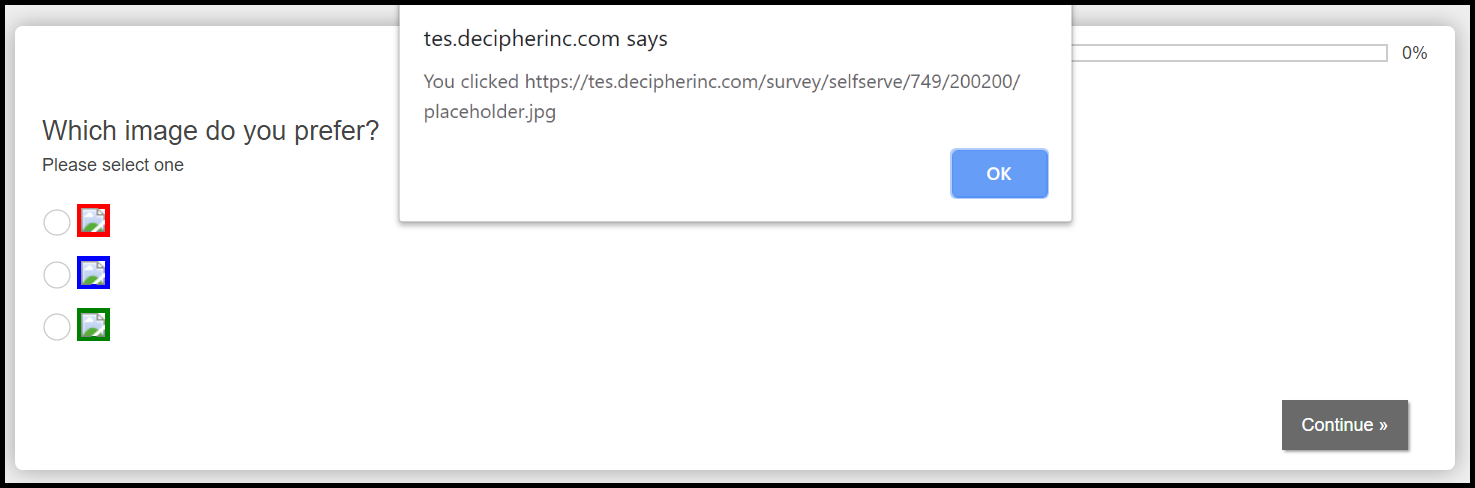

The code above produces the following result:
