You can use the MaxDiff element to automatically create a MaxDiff exercise within your survey.
MaxDiff elements use “Best-Worst" scaling to help you determine participants’ preferences on large lists of items without using large, complex grid tables. Asking participants to rank or rate a large list of items in one question can be overwhelming and can potentially introduce scaling bias. MaxDiffs resolve these issues by breaking up large lists of items into smaller, more digestible groups. Item groups can be defined by brands or other shared characteristics.
In a MaxDiff element, participants will be asked the same question multiple times, but each time, they will see a different subset of items to rate. By asking participants to rate items this way, MaxDiffs allow you to simplify the question, eliminate any bias, and test a much larger number of items than you would otherwise be able to.
In addition to generating a MaxDiff exercise, the MaxDiff element appends a raw utility score to the report for each of the items included in the question.
1: How it Works
Each MaxDiff element includes multiple versions of the question, or “tasks”, with a different subset of answer items, or “attributes” for participants to rate. Each participant is randomly assigned to one of these versions at the start of the exercise, and will only see the tasks and attributes in that version.
Which attributes are displayed in each version, and the order that tasks appear are controlled by a design that is automatically built based on the number of attributes added to the element.
1.1: Versions
Each MaxDiff design contains 300 versions. The version seen by a participant is assigned to that participant using a special survey marker to ensure that all versions are distributed equally and randomly.
MaxDiff survey markers will include the element’s question label and a “vX” value, where “X” is the version number seen by the participant. For example, the marker /de/maxdiff/Q12/v1 would appear for a participant who saw version 1 of the exercise from the element labeled Q12.
1.2: Utility Scores
Utility scores are calculated and appended to the report after participants have completed the MaxDiff exercise. The following formula is used to calculate the utility score for each attribute:
Utility Score = 50 + (50 * (B-W)) /N
Variables are defined as follows:
-
B: The number of times the attribute was selected as “Best” (
c1) by participants. -
W: The number of times the attribute was selected as “Worst” (
c2) by participants. - N: The number of times the attribute was shown to participants across the exercise.
For example, if an attribute was selected as “Best” every time it was shown, its utility score would be 100. It was selected as “Worst” every time it was shown, its score would be 0. If that same attribute was never selected, its score would be 50.
Note: Crosstabs utility scores are calculated using only the formula outlined above and are not indicative of an attribute’s probability of being selected. If you need to run advanced analytics on your MaxDiff results in another tool or platform, you will want to use the raw attribute data rather than the scores provided here.
2: Adding the MaxDiff Element Via the Survey Editor
Note: You can set the "Show" filter to display only elements that are compatible or optimized for the devices allowed for your project. Learn how to verify your project settings.

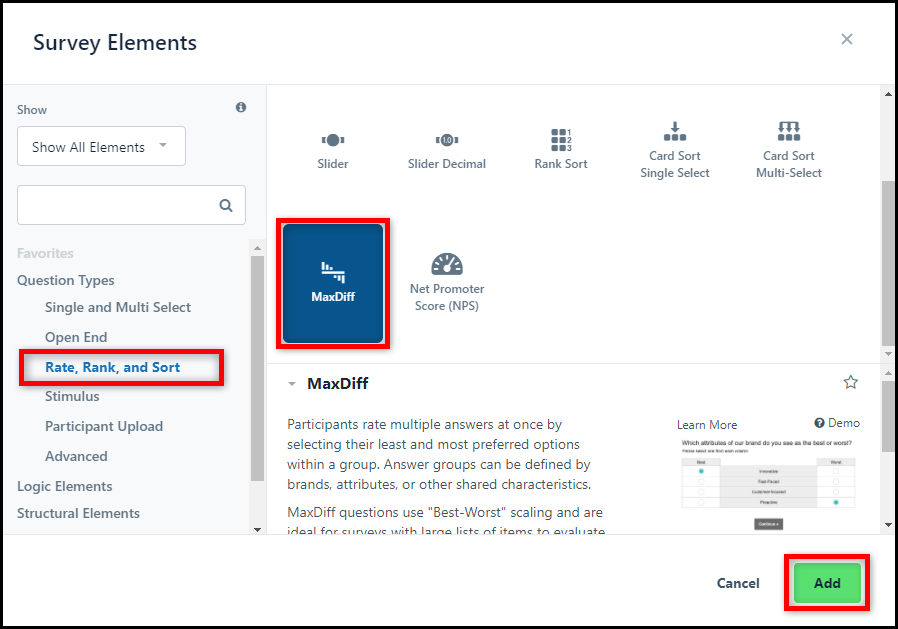

To add a MaxDiff element, first click the + Element button to add a new survey element. Then click Rate, Rank, and Sort under Question Types and select the MaxDiff element. Then click Add.
Enter the question and instruction text in the areas provided. Then use the Options menu to the right of the staging area to customize the MaxDiff element.
Important: Do not edit column labels. Column labels should be c1 and c2 for the utility score calculation to work correctly.
2.1: Adding Attributes

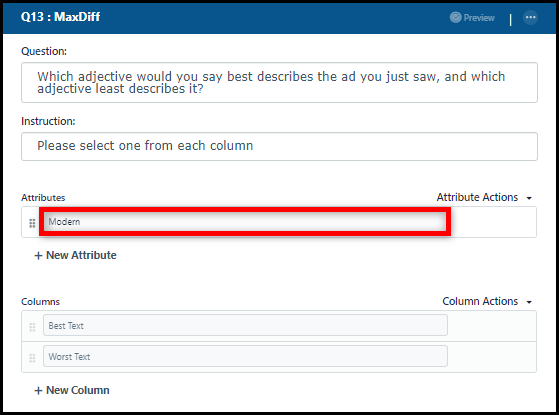

MaxDiff elements can contain between 8 and 20 attributes. Click into an existing attribute row to get started or click + New Attribute to add the first row for your exercise. Then click into that row field and enter your attribute text.
Repeat the steps above to continue adding attributes.
2.2: Viewing Attribute Actions

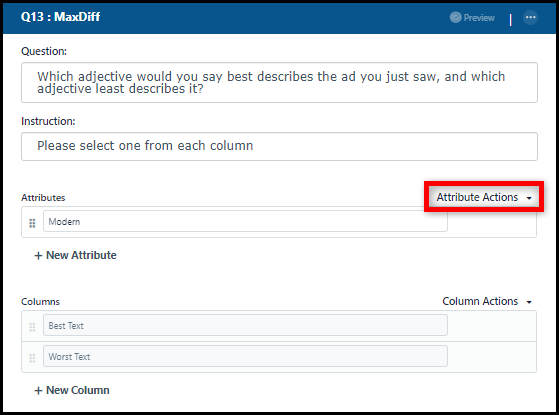

Click Attribute Actions to access the following edit options:
Insert Reusable Answer List (only available if you have previously saved an answer list)
2.3: Adding Columns

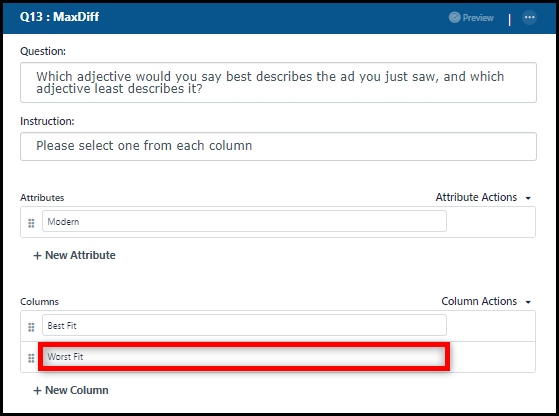

MaxDiff elements must contain exactly two columns, with the first column indicating the “best” or most preferable option, and the second column indicating the “worst” or least preferable option. Click into a column field to customize the name for that column.
Important: Do not edit the column labels. Column labels should be c1 and c2 for the utility score calculation to work correctly.
2.4: Configuring Style Settings

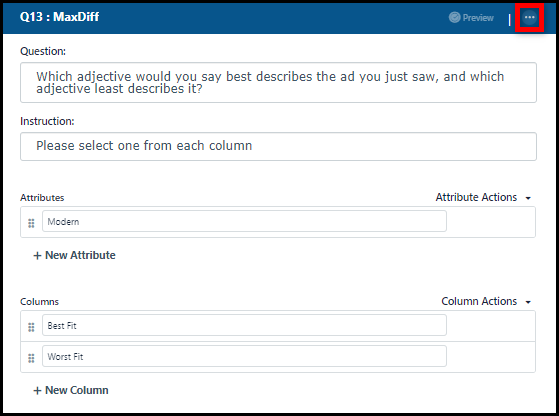

To configure the style settings for the MaxDiff element, click the "..." button at the top right of the element in the staging area and select Update Styling.

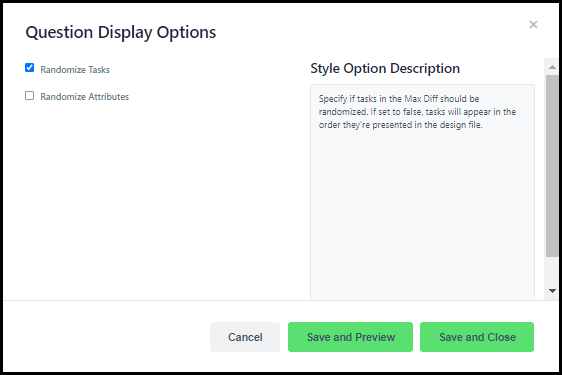

In the Question Display Options menu, configure the settings for the element using the options on the left. Additional information about each feature will appear on the right when you mouse-over the text. You may also click Save and Preview to preview the settings.
The following display settings are available:
Style Option |
Description |
Randomize Tasks |
Randomizes the order in which tasks are displayed in the exercise. If not selected, the order of the tasks is determined by the design file. |
Randomize Attributes |
Randomizes the order in which attributes are displayed in the exercise. If not selected, the order of the attributes is determined by the design fiIe. |
Note: Attributes are randomized by default to create the different versions of the question seen by participants. Enabling randomization here will introduce further unpredictability of the order in which they are seen.
Once you are satisfied with your settings, click Save and Close to apply them to the element.
2.5: Configuring Question Options
The general options available for the MaxDiff element are located to the right of the staging area. You can set rules for the entire element by clicking near the question text or set rules for individual attributes by clicking the attribute you wish to edit. The Options menu will show the question or attribute label and type for the option you have selected to edit.
2.5.1: Question Options
When altered, each of the following options affects all attributes within the Maxdiff element.
Label: The label assigned to the element. Click to edit the default label for the MaxDiff element.
Show if: Click to create new logic conditions or select an existing logic condition for the element. Learn more about Adding Logic to a Question or Response Option.
Languages: Click to select what languages the element will be shown in if the survey has multiple languages. The default is "all".
Mandatory: The MaxDiff question is always mandatory. Even when unchecked, participants will be unable to continue through the survey without completing the question.
Randomize: Check the boxes to randomize items by type. Items can be randomized by rows or columns.
Note: Randomizing columns can negatively impact tracking between the ‘best’ and ‘worst’ rankings. If you would like to randomize your exercise’s tasks or attributes, use the style options outlined in 2.4: Configuring Style Settings above.
More options: Click to select less commonly used options. Once selected, you will be able to specify the setting for that option. Learn more about the available options.
2.5.2: Attribute Options
When altered, each of the following options only affects specific attribute options.
- Label: The label assigned to the attribute. Click to edit the default label for the attribute.
Show if: Click to create new logic conditions or select an existing logic condition for the row. Learn more about Adding Logic to a Question or Response Option.
Note: For best results, show all rows at all times in MaxDiff exercises.
- Languages: Click to select what languages the response option will be shown in if the survey has multiple languages. The default is "all".
Note: For best results, use all languages in MaxDiff exercises.
Do not randomize: This option is only available if the "Randomize" general option is selected. Check the box to force the product to remain stationary.
Open End: Not applicable to the MaxDiff element.
Hidden: Click to hide the response options from participants.
Note: Show all response options to ensure that participants fully complete the exercise before moving forward in the survey.
- More options: Click to select less commonly used options. Once selected, you will be able to specify the setting for that option. Learn more about the available options.
Important: Do not edit the column labels. Column labels should remain c1 and c2 for the utility score calculation to work correctly.
3: Adding the MaxDiff Element Via the XML
To add a MaxDiff element via the survey XML, first create a radio question in
the desired location. Then add uses="de_maxdiff.1" to the question
tag, along with values="order" and
where="execute,survey":
<radio
label="Q12"
uses="de_maxdiff.1"
values="order"
where="execute,survey">
</radio>
Next, add your question text and instructions, as well as the columns and rows for your exercise.
3.1: Adding Columns
MaxDiff elements must contain exactly two columns, with the first column indicating
the “best” or most preferable option (<col label="c1">Best Fit</col>), and the second column to indicating the
“worst” or least preferable option (<col label="c2">Worst Fit</col>). Add these two columns, setting the text for
each one as you would like it to appear within the exercise.
Important: Column labels should be c1 for the most preferable option and c2 for the least preferable option in order for the utility score calculation to work correctly.
3.2: Adding Attributes
MaxDiff elements can contain between 8 and 20 attributes. Add one row per attribute, setting the row text as you would like the attribute to appear within the exercise.
3.3: Customizing the Exercise
If desired, you can change the way the MaxDiff exercise appears within the survey. Use the following optional attributes to customize your exercise:
Attribute |
Type |
Description |
|
boolean |
Set to 1 to randomize the order in which tasks are displayed in the exercise. By default, the order of the tasks is determined by the design file (set to 0). |
|
boolean |
Set to 1 to randomize the order in which attributes are displayed in the exercise. By default, the order of the attributes is determined by the design fiIe (set to 0). |
Note: The MaxDiff element is not affected by the accordion style attribute. Setting ss:accordionDisplay="1" at the survey or question level has no effect on its appearance.
3.4: Example

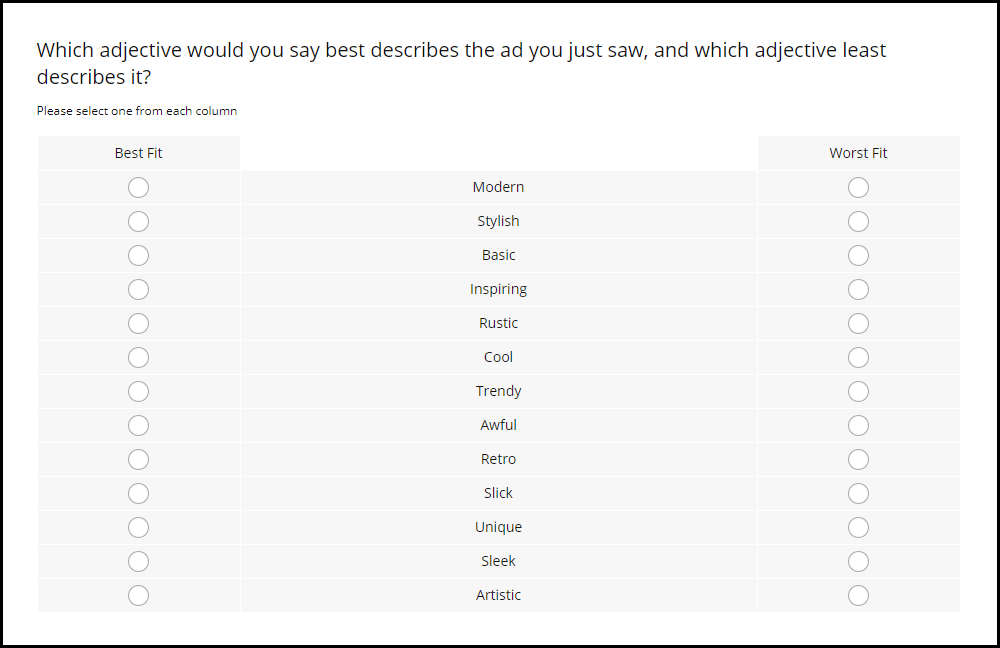

The following example exercise asks users to rate the best and worst descriptors for an ad. It contains 14 attributes and will randomize the order of both its tasks and attributes:
<radio
label="Q12"
de_maxdiff:randomizeTasks="1"
de_maxdiff:randomizeAttributes="1"
optional="1"
uses="de_maxdiff.1"
values="order"
where="execute,survey">
<title>Which adjective would you say best describes the ad you just saw, and which adjective least describes it?</title>
<comment>Please select one from each column</comment>
<col label="c1">Best Fit</col>
<col label="c2">Worst Fit</col>
<row label="r1" value="1">Stylish</row>
<row label="r2" value="2">Sleek</row>
<row label="r3" value="3">Modern</row>
<row label="r4" value="4">Trendy</row>
<row label="r5" value="5">Unique</row>
<row label="r6" value="6">Basic</row>
<row label="r7" value="7">Cool</row>
<row label="r9" value="8">Slick</row>
<row label="r10" value="9">Retro</row>
<row label="r11" value="10">Artistic</row>
<row label="r12" value="11">Rustic</row>
<row label="r13" value="12">Inspiring</row>
<row label="r14" value="13">Awful</row>
</radio>
4: Viewing the Survey
The MaxDiff element controls how the exercise appears to participants and is not displayed within the survey. Instead, participants will see a copy of the question for each task that has been assigned to them within the design file.
In addition, a hidden question is created within the survey and reports that tracks which version was seen by each participant. This question is not seen by participants and can only be viewed from within the survey if you have enabled QA testing tools.
5: Viewing the Report
Once you have closed your survey, you may review the utility scores for your MaxDiff question in Crosstabs.
5.1: Report Tables
When viewing the report, you will notice that MaxDiff elements include several report tables. These tables contain the element’s utility scores, version information, and other data.
Note: The “x” in each table name will be replaced with the question number of the MaxDiff element as it appears in your survey.
The following summary tables are available for each MaxDiff.
5.1.1: Utility Scores
The report will contain two different types of utility score tables. Both of these table types will be labeled as “Qx_score”, with the “x” value replaced by the question label for the MaxDiff element.

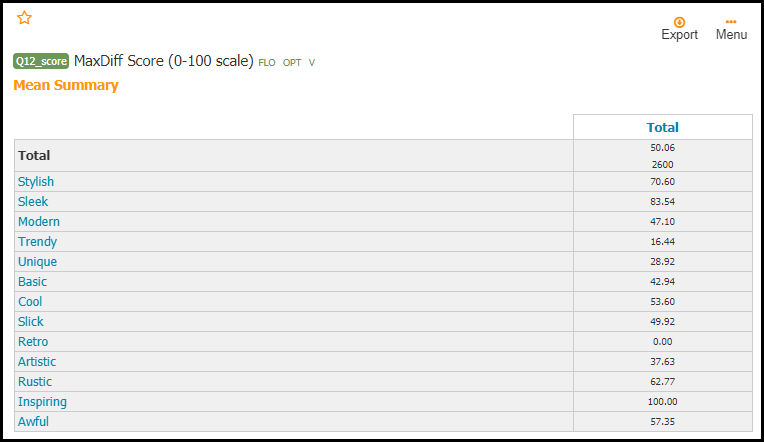

The first table type is a Mean Summary table with the mean utility scores for all attributes.

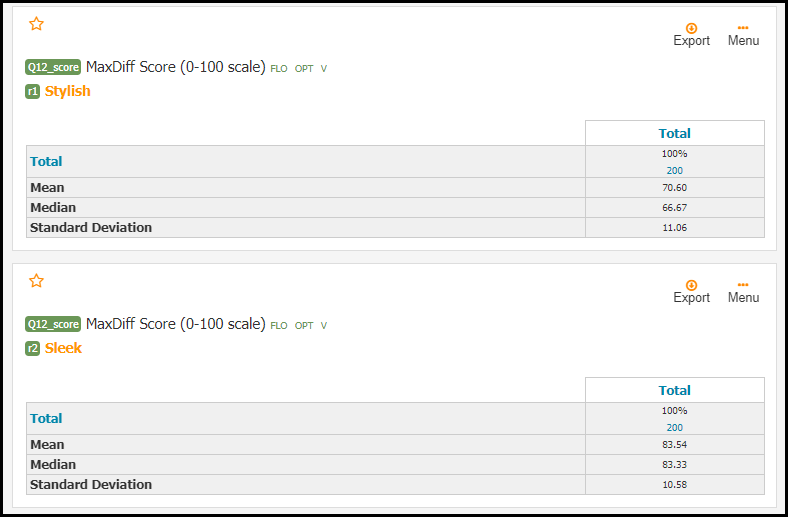

The second is a Mean Summary table with the mean utility scores for an individual attribute. There will be one of these tables for each attribute in the MaxDiff.
5.1.2: Versions

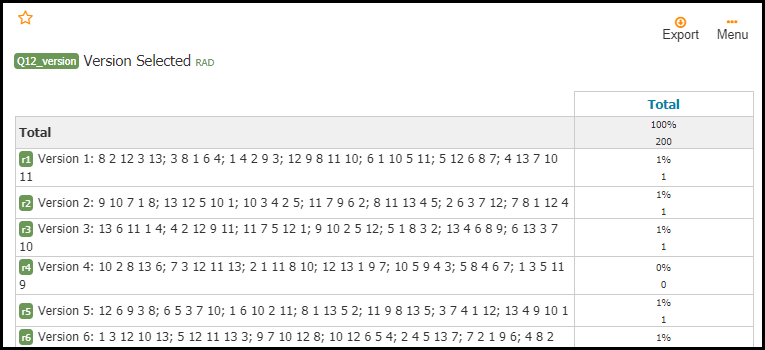

The report will also contain a version table, which includes a list of all the different versions of the MaxDiff and a count of how many participants saw each one. This table will be labeled as “Qx_version”, with the “x” value replaced by the question label for the MaxDiff element.
5.1.3: Times Selected

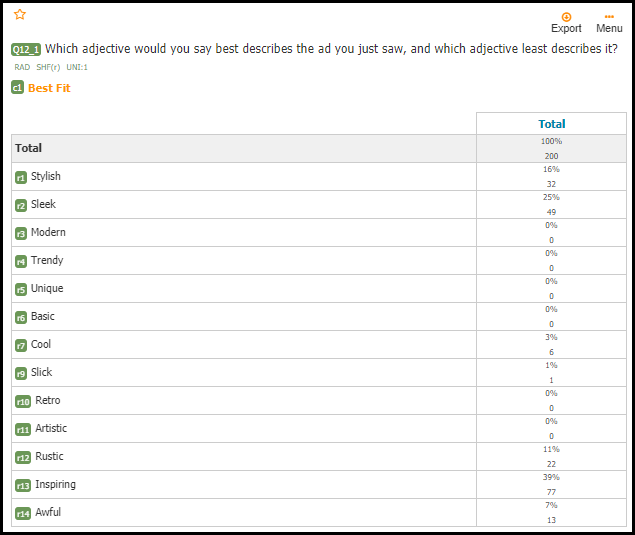

Finally, the report will include two additional tables for every attribute that indicate how many times that attribute was selected for each column. These tables will be listed in pairs and will all be labeled as “Qx_y”, with the “x” value replaced by the question label for the MaxDiff element and the “y” replace by the row number for the attribute.
All attributes will also be listed in order by column. For example, if you had just two attributes in your MaxDiff with the Q12 question label, you would have the following four report tables:
- Q12_1: The number of times column 1 was selected for attribute 1.
- Q12_1: The number of times column 2 was selected for attribute 1.
- Q12_2: The number of times column 1 was selected for attribute 2.
- Q12_2: The number of times column 2 was selected for attribute 2.
